“Single flow” 4-way valve for single pipe circuits
25

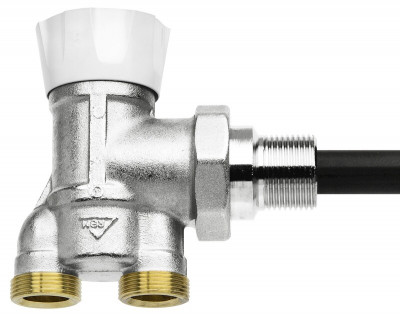

"Single flow" 4-way valve for single pipe circuits.
| Nickel-plated brass body. Elastomer seals. Shockproof ABS hand wheel. Internal by-pass with fixed leakage. Polymer probe. |
| Line connections, centre distance 37 mm threaded M standard RBM for copper, polyethylene and multilayer pipe fittings. Connection to the radiator threaded M UNI-EN-ISO 228. |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
| Probe length 300 mm |
| Probe outside diameter 15 mm |
4-way valve for single pipe circuits
| Code | Measure | Model | Pack | Outer | Cat. | € |
| 25.05.00 | G 3/4" | Single flow | 5 | 20 | 21.01 | ||00250500_LastPrice|| |
| 25.05.10 | G 3/4" Ø 18 (*) | Single flow | 5 | 20 | 21.01 | ||00250510_LastPrice|| |
| 25.05.50 | G 3/4" SX (**) | Single flow | 5 | 20 | 21.01 | ||00250550_LastPrice|| |
| 25.06.00 | G 1" | Single flow | 5 | 20 | 21.01 | ||00250600_LastPrice|| |
| 25.06.10 | G 1" Ø 18 (*) | Single flow | 5 | 20 | 21.01 | ||00250610_LastPrice|| |
| 25.06.50 | G 1" SX (**) | Single flow | 5 | 20 | 21.01 | ||00250650_LastPrice|| |
