Series 617.A

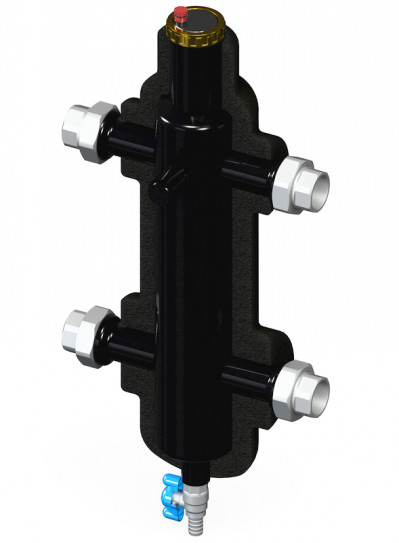

Threaded hydraulic separator

Series 617.A
Threaded, pre-dimensioned hydraulic separator.
Painted steel body.
Valves and degasser are made of brass.
PTFE ball valves seals.
Elastomer degasser seals.
Threaded union connections F UNI-EN-ISO 228.
Front connection for 1/2” F UNI-EN-ISO 228 accessories.
Max operating pressure:
Separator body 10 Bar
Ball valve 25 Bar
Degasser 10 Bar
Allowed temperatures:
Degasser 0 ÷ +115 °C
Ball valve -15 ÷ +120 °C

Threaded hydraulic separator

Code Measure Flow rate s (l/h) Pack Outer Cat.
617.06.12 1” 2.500 1 60 01.01 ||06170612_LastPrice||
617.07.12 1”1/4 4.000 1 60 01.01 ||06170712_LastPrice||
617.08.12 1”1/2 6.000 1 42 01.01 ||06170812_LastPrice||
617.09.12 2” 8.500 1 30 01.01 ||06170912_LastPrice||
*
