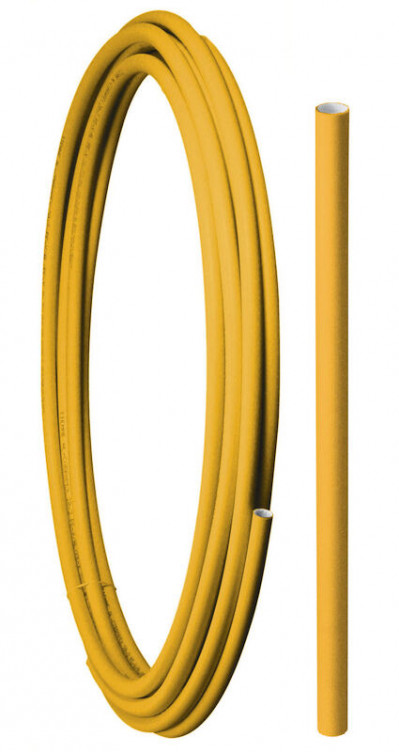

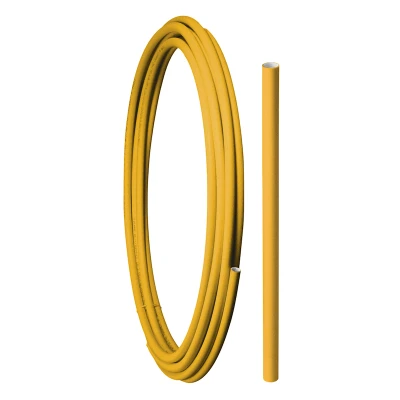

Tube multicouche PE-Xc RBM Tita-gas en barres
Série 1969
Tube multicouche PE-Xc RBM Tita-gas.
Approprié à la réalisation de grilles dédiées au transport de combustibles gazeux, conformes à la norme UNI 7129-1 et UNI 11344
« Systèmes de tuyaux multicouche métal-plastiques et raccords pour le transport de combustibles gazeux pour installations internes »
Composition PE-Xc/Al/PE-RT |
Couleur Jaune |
Pression de fonctionnement max. 0,5 bar |
Température de fonctionnement : -20 ÷ +70 °C |
Tube multicouche PE-Xc RBM Tita-gas en rouleau
Code | Mes. tube (mm) | Ép. aluminium (mm) | Rouleau (m) | Cond. (m) | Palette- (m) | Cat. | €/m |
1969.16.10 | 16x2 | 0,20 | 50 | 1 | 600 | 10.01 | ||19691610_LastPrice|| |
1969.16.00 | 16x2 | 0,20 | 100 | 1 | 1200 | 10.01 | ||19691600_LastPrice|| |
1969.20.10 | 20x2 | 0,30 | 50 | 1 | 600 | 10.01 | ||19692010_LastPrice|| |
1969.20.00 | 20x2 | 0,30 | 100 | 1 | 1200 | 10.01 | ||19692000_LastPrice|| |
1969.26.00 | 26x3 | 0,40 | 50 | 1 | 600 | 10.01 | ||19692600_LastPrice|| |
1969.32.00 | 32x3 | 0,40 | 50 | 1 | 600 | 10.01 | ||19693200_LastPrice|| |
Tube multicouche PE-Xc RBM Tita-gas en barres
Code | Mes. tube (mm) | Ép. aluminium (mm) | Barre#r# (m) | Cond.- (m) | Cat. | €/m |
1970.16.00 | 16x2 | 0,20 | 4 | 25 | 10.01 | ||19701600_LastPrice|| |
1970.20.00 | 20x2 | 0,30 | 4 | 19 | 10.01 | ||19702000_LastPrice|| |
1970.26.00 | 26x3 | 0,40 | 4 | 10 | 10.01 | ||19702600_LastPrice|| |
1970.32.00 | 32x3 | 0,40 | 4 | 6 | 10.01 | ||19703200_LastPrice|| |
