Valvola di sicurezza ordinaria per acqua

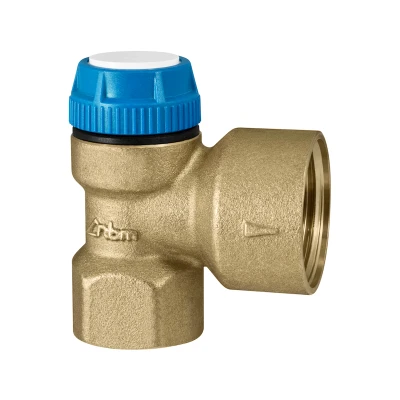

Seria 2809
Standardowy nadmiarowy zawór bezpieczeństwa z kontrolowanym wzrostem wody na wylocie; odpowiedni dla instalacji sanitarnych.
Korpus mosiężny. |
Sprężyna ze stali nierdzewnej AISI 302. |
Uszczelniacz elastomerowy. |
Membrana elastomerowa. |
Gwintowane połączenia kątowe FF UNI-EN-ISO 228. |
Maks. dopuszczalne ciśnienie PS 12 bar |
Maks. temperatura robocza 100 °C |
Nadciśnienie otwarcia +10% |
Ciśnienie zamknięcia odrzutu -20% |
Dopuszczalny płyn, woda-powietrze (Gr. 2) |
Products.Download
Standardy zawór bezpieczeństwa z połączeniem żeńskim 1/2” x 3/4”
Kod | Kalibracja (bar) | Moc maks. (kW) | Opakowanie | Zewnętrzne | Kat. | € |
2809.04.60 | 4,00 | 75 | 1 | 45 | 07.01 | ||28090460_LastPrice|| |
2809.04.90 | 6,00 | 75 | 1 | 45 | 07.01 | ||28090490_LastPrice|| |
2809.04.81 | 8,00 | 75 | 1 | 45 | 07.01 | ||28090481_LastPrice|| |
2809.04.11 | 10,00 | 75 | 1 | 45 | 07.01 | ||28090411_LastPrice|| |
Standardowy zawór bezpieczeństwa z połączeniem żeńskim 3/4” x 1
Kod | Kalibracja (bar) | Moc maks. (kW) | Opakowanie | Zewnętrzne | Kat. | € |
2809.05.60 | 4,00 | 150 | 1 | 20 | 07.01 | ||28090560_LastPrice|| |
2809.05.90 | 6,00 | 150 | 1 | 20 | 07.01 | ||28090590_LastPrice|| |
2809.05.81 | 8,00 | 150 | 1 | 20 | 07.01 | ||28090581_LastPrice|| |
2809.05.11 | 10,00 | 150 | 1 | 20 | 07.01 | ||28090511_LastPrice|| |
Standardowy zawór bezpieczeństwa z połączeniem żeńskim 1” x 1”1/4
Kod | Kalibracja (bar) | Moc maks. (kW) | Opakowanie | Zewnętrzne | Kat. | € |
2809.06.60 | 4,00 | 250 | 1 | 20 | 07.01 | ||28090660_LastPrice|| |
2809.06.90 | 6,00 | 250 | 1 | 20 | 07.01 | ||28090690_LastPrice|| |
2809.06.81 | 8,00 | 250 | 1 | 20 | 07.01 | ||28090681_LastPrice|| |
2809.06.11 | 10,00 | 250 | 1 | 20 | 07.01 | ||28090611_LastPrice|| |
Standardowy zawór bezpieczeństwa z połączeniem żeńskim 1”1/4 x 1”1/2
Kod | Kalibracja (bar) | Moc maks. (kW) | Opakowanie | Zewnętrzne | Kat. | € |
2809.07.90 | 6,00 | 350 | 1 | 10 | 07.01 | ||28090790_LastPrice|| |
2809.07.81 | 8,00 | 350 | 1 | 10 | 07.01 | ||28090781_LastPrice|| |
2809.07.11 | 10,00 | 350 | 1 | 10 | 07.01 | ||28090711_LastPrice|| |
