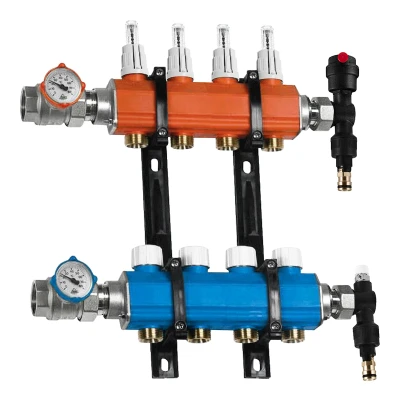

Voorgemonteerde modulaire anticondens collector. Van kunststof
Serie 1002.C
Voorgemonteerde modulaire anticondens collector. Van kunststof.
Bestaande uit: |
aanvoercollector met inregelbare debietmeters; |
retourcollector met motoriseerbare kranen; |
1 paar kunststof beugels; |
2 kogelkranen van 1" met ingebouwde thermometer 0÷80 °C; |
2 driedelige koppelingen; |
1 eindgroep met automatische ontluchter; |
1 eindgroep met manuele ontluchter. |
Temperatuurbereik 5÷80 °C |
Max. werkingsdruk 8 Bar |
Voorgemonteerde modulaire anticondens collector. Van kunststof
Code | Aansl. | Aantal aftakk. | Verp. | Overdoos | Cat. | € |
1002.06.40 | 1” | 2+2 | 1 | 1 | 30.01 | ||10020640_LastPrice|| |
1003.06.40 | 1” | 3+3 | 1 | 1 | 30.01 | ||10030640_LastPrice|| |
1004.06.40 | 1” | 4+4 | 1 | 1 | 30.01 | ||10040640_LastPrice|| |
1005.06.40 | 1” | 5+5 | 1 | 1 | 30.01 | ||10050640_LastPrice|| |
1006.06.40 | 1” | 6+6 | 1 | 1 | 30.01 | ||10060640_LastPrice|| |
1007.06.40 | 1” | 7+7 | 1 | 1 | 30.01 | ||10070640_LastPrice|| |
1008.06.40 | 1” | 8+8 | 1 | 1 | 30.01 | ||10080640_LastPrice|| |
1009.06.40 | 1” | 9+9 | 1 | 1 | 30.01 | ||10090640_LastPrice|| |
1010.06.40 | 1” | 10+10 | 1 | 1 | 30.01 | ||10100640_LastPrice|| |
1011.06.40 | 1” | 11+11 | 1 | 1 | 30.01 | ||10110640_LastPrice|| |
1012.06.40 | 1” | 12+12 | 1 | 1 | 30.01 | ||10120640_LastPrice|| |
1013.06.40 | 1” | 13+13 | 1 | 1 | 30.01 | ||10130640_LastPrice|| |
Asafstand aftakkingen 50mm - Euroconus G3/4" UNI-EN-ISO 228
