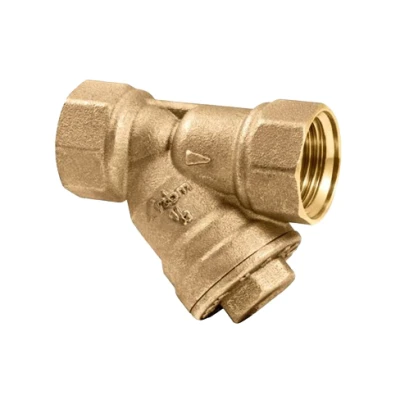

Y-filter met vervangbaar patroon
Serie 858
Y-filter met vervangbaar RVS patroon. Geschikt voor water.
| Lichaam van messing. |
| **waiting_for_translation** |
| Filterpatroon van RVS AISI 304. |
| Dichtingen van elastomeer. |
| Schroefdraadaansluitingen FF UNI-EN-ISO 228. |
| Max. werkingsdruk 16 Bar |
| Max. werkingstemperatuur 100°C |
| Maaswijdte: 100-300-800 μm |
Download
Certificering:
SWW
#s# #s#
#s# #s#
Y-filter 800 µm
| Code | Aansl. | Kv (m³/h) | Verp. | Overdoos | Cat. | € |
| 08580412 | G 1/2” | 3,69 | 20 | 80 | 20.02 | ||08580412_LastPrice|| |
| 08580512 | G 3/4” | 6,57 | 12 | 48 | 20.02 | ||08580512_LastPrice|| |
| 08580612 | G 1” | 9,23 | 8 | 32 | 20.02 | ||08580612_LastPrice|| |
| 08580712 | G 1”1/4 | 15,60 | 3 | 12 | 20.02 | ||08580712_LastPrice|| |
| 08580812 | G 1”1/2 | 25,10 | 2 | 2 | 20.02 | ||08580812_LastPrice|| |
| 08580912 | G 2” | 38,80 | 1 | 1 | 20.02 | ||08580912_LastPrice|| |
Y-filter 300 µm
| Code | Aansl. | Kv (m³/h) | Verp. | Overdoos | Cat. | € |
| 08580402 | G 1/2” | 3,00 | 20 | 80 | 20.02 | ||08580402_LastPrice|| |
| 08580502 | G 3/4” | 6,53 | 12 | 48 | 20.02 | ||08580502_LastPrice|| |
| 08580602 | G 1” | 8,79 | 8 | 32 | 20.02 | ||08580602_LastPrice|| |
| 08580702 | G 1”1/4 | 14,15 | 3 | 12 | 20.02 | ||08580702_LastPrice|| |
| 08580802 | G 1”1/2 | 23,80 | 2 | 2 | 20.02 | ||08580802_LastPrice|| |
| 08580902 | G 2” | 36,20 | 1 | 1 | 20.02 | ||08580902_LastPrice|| |
Y-filter 100 µm
| Code | Aansl. | Kv (m³/h) | Verp. | Overdoos | Cat. | € |
| 08580472 | G 1/2” | 2,57 | 20 | 80 | 20.02 | ||08580472_LastPrice|| |
| 08580572 | G 3/4” | 5,74 | 12 | 48 | 20.02 | ||08580572_LastPrice|| |
| 08580672 | G 1” | 5,84 | 8 | 32 | 20.02 | ||08580672_LastPrice|| |
| 08580772 | G 1”1/4 | 10,80 | 3 | 12 | 20.02 | ||08580772_LastPrice|| |
| 08580872 | G 1”1/2 | 16,80 | 2 | 2 | 20.02 | ||08580872_LastPrice|| |
| 08580972 | G 2” | 28,20 | 1 | 1 | 20.02 | ||08580972_LastPrice|| |
Vervangbaar patroon.
Zie wisselstukken.
