Raccordi a stringere ad angolo per tubo multistrato - attacco maschio gas

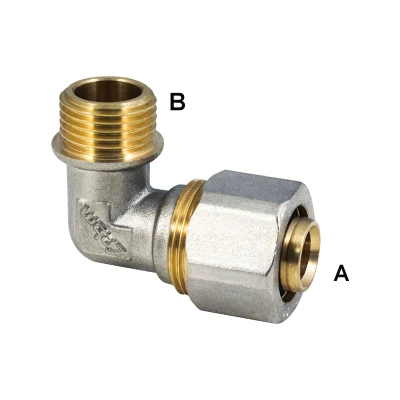

Serie 1936
Raccordi a stringere per tubo multistrato ad angolo - attacco maschio gas
Corpo e dado in ottone nichelato. |
Ghiera stringitubo in ottone. |
Guarnizioni di tenuta in elastomero. |
Temperatura di esercizio max 95 °C |
Pressione di esercizio max 10 Bar |
Raccordi a stringere per tubo multistrato ad angolo - attacco maschio gas
Codice | Misura A | Misura B | Conf. | Imballo | Cat. | € |
1936.16.02 | 16x2 | 1/2” M | 10 | 180 | 10.02 | ||19361602_LastPrice|| |
1936.16.12 | 16x2 | 3/4” M | 10 | 120 | 10.02 | ||19361612_LastPrice|| |
1936.18.02 | 18x2 | 1/2” M | 10 | 120 | 10.02 | ||19361802_LastPrice|| |
1936.18.12 | 18x2 | 3/4” M | 10 | 120 | 10.02 | ||19361812_LastPrice|| |
1936.20.02 | 20x2 | 1/2” M | 10 | 120 | 10.02 | ||19362002_LastPrice|| |
1936.20.12 | 20x2 | 3/4” M | 10 | 120 | 10.02 | ||19362012_LastPrice|| |
1936.26.12 | 26x3 | 3/4” M | 5 | 60 | 10.02 | ||19362612_LastPrice|| |
1936.26.22 | 26x3 | 1” M | 5 | 60 | 10.02 | ||19362622_LastPrice|| |
1936.32.22 | 32x3 | 1” M | 5 | 30 | 10.02 | ||19363222_LastPrice|| |
Misura A: Ø esterno x spessore tubo
Misura B: filettatura UNI-EN-ISO 228
