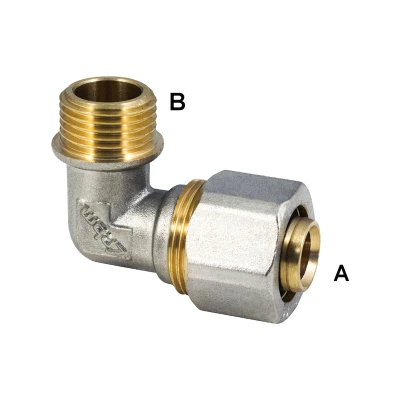

Angled compression fittings for multilayer pipe - male gas connection
Series 1936
Compression fittings for angle multilayer pipe - male gas connection
| Nickel plated brass body and nut. |
| Brass pipe clip ring nut. |
| Elastomer gaskets. |
| Max operating temperature 95 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
Compression fittings for angle multilayer pipe - male gas connection
| Code | Size A | Size B | Pack | Outer | Cat. | € |
| 1936.16.02 | 16x2 | 1/2" M | 10 | 180 | 10.02 | ||19361602_LastPrice|| |
| 1936.16.12 | 16x2 | 3/4" M | 10 | 120 | 10.02 | ||19361612_LastPrice|| |
| 1936.18.02 | 18x2 | 1/2" M | 10 | 120 | 10.02 | ||19361802_LastPrice|| |
| 1936.18.12 | 18x2 | 3/4" M | 10 | 120 | 10.02 | ||19361812_LastPrice|| |
| 1936.20.02 | 20x2 | 1/2" M | 10 | 120 | 10.02 | ||19362002_LastPrice|| |
| 1936.20.12 | 20x2 | 3/4" M | 10 | 120 | 10.02 | ||19362012_LastPrice|| |
| 1936.26.12 | 26x3 | 3/4" M | 5 | 60 | 10.02 | ||19362612_LastPrice|| |
| 1936.26.22 | 26x3 | 1" M | 5 | 60 | 10.02 | ||19362622_LastPrice|| |
| 1936.32.22 | 32x3 | 1" M | 5 | 30 | 10.02 | ||19363222_LastPrice|| |
Size A: Outside Ø x pipe thickness
Size B: thread UNI-EN-ISO 228
