Meerlagen RBM buis TITA-FIX PE-RT
Serie 1545
Meerlagen TITA-FIX PE-RT-buis.
| Meerlagen buis met laag van gelast aluminium type A. |
| Samenstelling PE-RT/Al/PE-RT |
| Wit |
| Max. werkingsdruk 10 Bar |
| t°max 95°C |
| Levensduur bij normale bedrijfsomstandigheden ~ 50 jaar. |
| Type: PE-RT |
Download
Certificering:
Conform: EN ISO 21003
DM 174/04

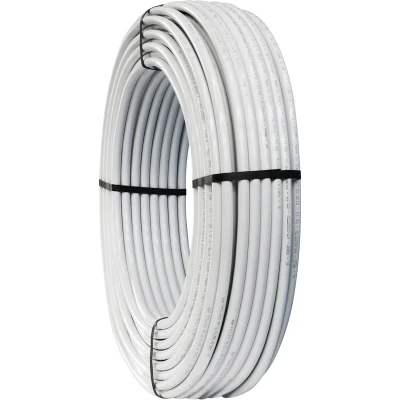

Meerlagen PE-RT-buis. Op rol.
| Code | Diameter (mm) | Dikte al. (mm) | Rol (m) | Verp. (m) | Pallet (m) | Cat. | €/m |
| 1545.16.00 | 16x2 | 0,20 | 100 | 100 | 1400 | 10.01 | ||15451600_LastPrice|| |
| 1545.16.20 | 16x2 | 0,20 | 250 | 250 | 2500 | 10.01 | ||15451620_LastPrice|| |
| 1545.16.10 | 16x2 | 0,20 | 500 | 500 | 3000 | 10.01 | ||15451610_LastPrice|| |
| 1545.20.00 | 20x2 | 0,30 | 100 | 100 | 1400 | 10.01 | ||15452000_LastPrice|| |
| 1545.20.10 | 20x2 | 0,30 | 250 | 250 | 1750 | 10.01 | ||15452010_LastPrice|| |
| 1545.20.50 | 20x2 | 0,30 | 500 | 500 | 2500 | 10.01 | ||15452050_LastPrice|| |
| 1545.26.00 | 26x3 | 0,40 | 50 | 1 | 550 | 10.01 | ||15452600_LastPrice|| |
| 1545.32.00 | 32x3 | 0,40 | 50 | 1 | 600 | 10.01 | ||15453200_LastPrice|| |
| 1545.40.00 | 40x3,5 | 0,50 | 25 | 1 | 300 | 10.01 | ||15454000_LastPrice|| |
Maat: buitenØ x wanddikte
Meerlagen PE-RT-buis. Op lengte.
| Code | Diameter (mm) | Dikte al. (mm) | Lengte (m) | Verp. (m) | Pallet (m) | Cat. | €/m |
| 1546.16.00 | 16x2 | 0,20 | 4 | 100 | - | 10.01 | ||15461600_LastPrice|| |
| 1546.20.00 | 20x2 | 0,30 | 4 | 76 | - | 10.01 | ||15462000_LastPrice|| |
| 1546.26.00 | 26x3 | 0,40 | 4 | 40 | - | 10.01 | ||15462600_LastPrice|| |
| 1546.32.00 | 32x3 | 0,40 | 4 | 24 | - | 10.01 | ||15463200_LastPrice|| |
| 1546.40.00 | 40x3,5 | 0,50 | 5 | 50 | 800 | 10.01 | ||15464000_LastPrice|| |
| 1546.50.00 | 50x4 | 0,60 | 5 | 15 | 500 | 10.01 | ||15465000_LastPrice|| |
| 1546.63.00 | 63x4,5 | 0,80 | 5 | 5 | 385 | 10.01 | ||15466300_LastPrice|| |
Maat: buitenØ x wanddikte
