360-VMC-A | Series 2945.B

360-VMC-A

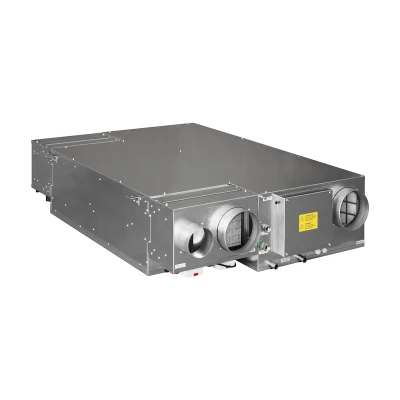

Ducted false ceiling-mounted air handling unit with air renewal and heat recovery

Series 2945.B
Ductable air-handling unit for false ceilings, with air renewal and heat recovery, dehumidification and integration of sensitive power in summer and heating in winter of 180-360 m³/h.
Structure in galvanised sheet metal which contains: a direct expansion refrigeration circuit and an alternative gas R134a (620g) refrigeration compressor, a finned coil supplied by the hydraulic circuit of the radiant system, a very high efficiency polystyrene cross counter-flow heat recovery unit, dampers for aeraulic flow control, two EC electronically controlled fans and easily replaceable low pressure drop G4 filters.
Thanks to special fans that are installed, the electronic controller sets the air flow rates for the various functions: the unit reaches these flow rates regardless of pressure loss in the ducts, as long as they do not exceed the maximum available head.
The unit is equipped with a control panel, to be placed in the electrical panel (DIN bar), to automatically manage operation of the ventilation unit, which allows easy management via the Kilma SET2 thermoregulation system.
This heat recovery unit with dehumidification function requires a condenser that disposes of the condensation heat on the ejection air (air condensation).
Fresh air flow rate: 90-220 m³/h
Total treated air flow rate: 220-360 m³/h
Water flow rate: 360 l/h (+15°C), loss 12kPa
Sound pressure: 42 dB(A)
Available dehumidification capacity (referred to recirculation): 25 l/24h (+26°C/65% rH)
Useful cooling capacity (referred to the recirculation): 1460 W (+26°C/65% rH)
Power demand: 820W
Power supply: 230V/50Hz
Dimensions (LxHxW): 1202x851x276 mm
Weight: 85 Kg
Aeraulic connections: 4x DN160 (Del/Rec/ Inp/Exp), 1x DN125 (Int)
Hydronic connections: 2x1/2" F
Condensate drain connections: 2xDN19

Certifications:

360-VMC-A

Code Model Assembly Pack Outer Cat.
29450002 360-VMC-A False ceiling 1 1 30.09 ||29450002_LastPrice||

Ductable equipment designed for horizontal fitting on suspended ceilings.

CHARACTERISTICS:

Air renewal with high efficiency heat recovery;

Air renewal with free-cooling, i.e. without heat recovery in both summer and winter, with a dedicated external air shut-off damper.

Air condensation.

Summer dehumidification with flow temperature modulation;

Winter heating with the possibility of modulating the flow temperature;

Electronic adjustment of air flow rates, automatic calibration on ducting;

Self-diagnosis with temporary operating modes to avoid service interruptions.

The machine is equipped with a remote control panel to be installed on a DIN guide in an electrical panel.
