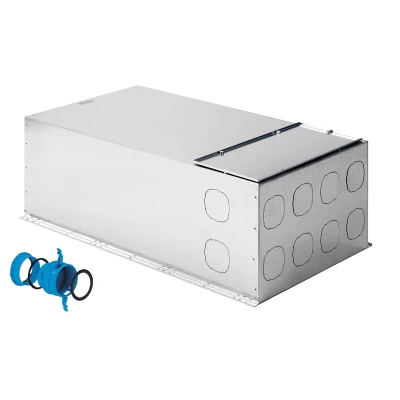

4603 series

Manifold with built-in muffler

4603 series
Manifold with built-in muffler
Made of galvanised sheet with internal insulation thickness 6mm (λ = 0.0344W / mK).
Easily removable inspection hatch
Both straight and side outlets with knockouts to be removed only based on the number of pipes that will actually be connected.
Full length protruding slots on lips for easier ceiling/wall mounting.
Sound absorbing hexagon-shaped panel made of sound-absorbing material; centrally positioned to split the incoming flow and thus increase noise reduction.
SIBOX-4 (LxHxD): 450x160x850 mm, weight 10.6kg
SIBOX-8 (LxHxD): 450x308x850 mm, weight 13.1kg

Download

Soundproofed distribution manifolds

Code Model Description Box Pallet m Cat. €/m
46030412 SIBOX-4 DN125M, 1+4+1xDN≈80 1 6 30.09 ||46030412_LastPrice||
46030816 SIBOX-8 DN160M, 2+8+2xDN≈80 1 4 30.09 ||46030816_LastPrice||

Sagome dei pre-tranciati atte ad accogliere le partenze collettore serie 5091 (escluse dalla fornitura del plenum) che consentono il collegamento alla rete di distribuzione realizzata con tubazione DN75 o DN 90 serie 5100
