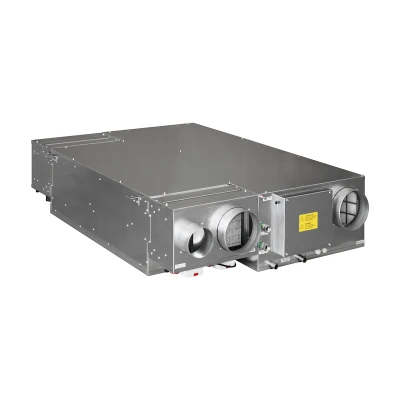

500-VMC-A
Ducted false ceiling-mounted air handling unit with air renewal and heat recovery
Series 2945.C
Ductable air-handling unit for false ceilings, with air renewal and heat recovery, dehumidification and integration of sensitive power in summer and heating in winter of 250-500 m³/h.
| Structure in galvanised sheet metal which contains: a direct expansion refrigeration circuit and an alternative gas R410a (450g) refrigeration compressor, a finned coil supplied by the hydraulic circuit of the radiant system, a very high efficiency polystyrene cross counter-flow heat recovery unit, dampers for aeraulic flow control, two EC electronically controlled fans and easily replaceable low pressure drop G4 filters. |
| Thanks to special fans that are installed, the electronic controller sets the air flow rates for the various functions: the unit reaches these flow rates regardless of pressure loss in the ducts, as long as they do not exceed the maximum available head. |
| The unit is equipped with a control panel, to be placed in the electrical panel (DIN bar), to automatically manage operation of the ventilation unit, which allows easy management via the Kilma SET2 thermoregulation system. |
| This heat recovery unit with dehumidification function requires a condenser that disposes of the condensation heat on the ejection air (air condensation). |
| Fresh air flow rate: 160-300 m³/h |
| Total treated air flow rate: 300-500 m³/h |
| Water flow rate: 500 l/h (+15°C), loss 11kPa |
| Sound pressure: 48 dB(A) |
| Available dehumidification capacity (referred to recirculation): 31.2 l/24h (+26°C/65% rH) |
| Useful cooling capacity (referred to the recirculation): 25800 W (+26°C/65% rH) |
| Power demand: 780W |
| Power supply: 230V/50Hz |
| Dimensions (LxHxW): 1233x930x406 mm |
| Weight: 105 Kg |
| Aeraulic connections: 4x DN200 (Del/Rec/ Inp/Exp), 1x DN160 (Int) |
| Hydronic connections: 2x1/2" F |
| Condensate drain connections: 3xDN14 |
Download
Certifications:
500-VMC-A
| Code | Model | Assembly | Box | Carton | Cat. | € |
| 29455002 | 500-VMC-A | False ceiling | 1 | 1 | 30.09 | ||29455002_LastPrice|| |
Ductable equipment designed for horizontal fitting on suspended ceilings.
CHARACTERISTICS:
Air renewal with high efficiency heat recovery;
Air renewal with free-cooling, i.e. without heat recovery in both summer and winter, with a dedicated external air shut-off damper.
Air condensation.
Summer dehumidification with flow temperature modulation;
Winter heating with the possibility of modulating the flow temperature;
Electronic adjustment of air flow rates, automatic calibration on ducting;
Self-diagnosis with temporary operating modes to avoid service interruptions.
The machine is equipped with a remote control panel to be installed on a DIN guide in an electrical panel.
