860 Series - UNTIL STOCKS ARE FULL

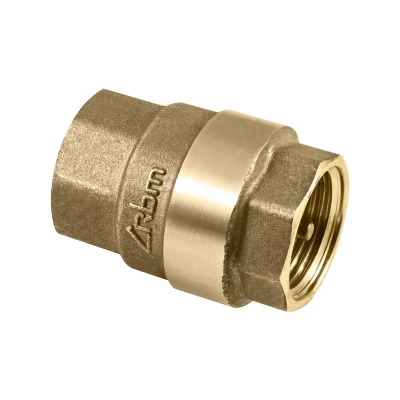

Check valve with FF connections suitable for water

860 Series - UNTIL STOCKS ARE FULL
Check valve, FF connections, brass rod. Suitable for water.
Brass body.
Elastomer gaskets.
Stainless steel AISI 302 spring.
Threaded connections FF UNI-EN-ISO 228.
Min. opening pressure 0.04 Bar
Max operating temperature 90 °C (Water)
Max operating temperature 110 °C (Air)

Certifications:

DHW

Check valve, FF connections, brass rod

Code Size PN Box Carton Cat.
08600402 1/2" 25 30 120 08.01 ||08600402_LastPrice||
08600502 3/4" 25 16 64 08.01 ||08600502_LastPrice||
08600602 1" 25 10 60 08.01 ||08600602_LastPrice||
08600702 1"1/4 16 8 32 08.01 ||08600702_LastPrice||
08600802 1"1/2 16 4 24 08.01 ||08600802_LastPrice||
08600902 2" 16 2 12 08.01 ||08600902_LastPrice||

Check valve, FF connections, plastic rod

Code Size PN Box Carton Cat.
08600412 1/2" 25 30 120 08.01 ||08600412_LastPrice||
08600512 3/4" 25 16 64 08.01 ||08600512_LastPrice||
08600612 1" 25 10 60 08.01 ||08600612_LastPrice||
08600712 1"1/4 16 8 32 08.01 ||08600712_LastPrice||
08600812 1"1/2 16 4 24 08.01 ||08600812_LastPrice||
08600912 2" 16 2 12 08.01 ||08600912_LastPrice||
