AIRFLAT 120 V | Series 5601.12

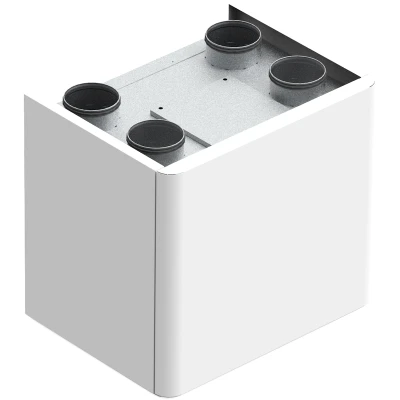

AIRFLAT 120 V
Very high efficiency 120 m³/h vertical heat recovery unit

Series 5601.12
High-efficiency vertical 120 m³/h recovery unit with built-in bypass for wall-mounting
  • 3+1V operation adjustable via the supplied remote touch panel
  • Bypass automatic operation
  • Filter alarm alert
  • Dimensions (LxHxD): 630x570x495mm, 32 Kg
    Aeraulic connections: 4x DN 125M upper
    Condensate drain connection: Ø 20 mm
    Power supply: 230V/50Hz
    Self-supporting sheet metal frame painted externally in RAL9003, with internal shaped EPS insulation with a density of 40 kg/m³
    Brushless fans with electronic motor, modulating control and low consumption
    High-efficiency polystyrene counter-current cross flow heat exchanger (code 5601.12.16 - 5602.12.16)
    Enthalpy exchanger (code 5621.12.16 - 5622.12.16)
    80% ePM1 class filters with low pressure drop
    Motorised by-pass with motor inserted in the electrical panel for easy maintenance

    Download

    Certifications:

    Features:

    AIRFLAT 120V

    Code Model Description Pack Outer Cat.
    5601.12.16 AIRFLAT 120V-R 120m³/h, vert, right 1 1 30.09 ||56011216_LastPrice||
    5602.12.16 AIRFLAT 120V-L 120m³/h, vert, left 1 1 30.09 ||56021216_LastPrice||

    AIRFLAT 120V ERV

    Code Model Description Pack Outer Cat.
    5621.12.16 AIRFLAT 120V-R-ERV 120m³/h, vert, right 1 1 30.09 ||56211216_LastPrice||
    5622.12.16 AIRFLAT 120V-L-ERV 120m³/h, vert, left 1 1 30.09 ||56221216_LastPrice||
