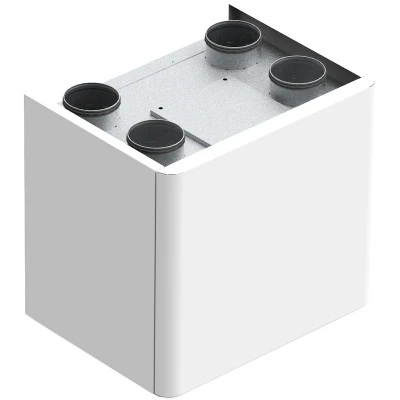

AIRFLAT 280 V | Series 5601.28

AIRFLAT 280 V
Very high efficiency 280 m³/h vertical heat recovery unit

Series 5601.28
High-efficiency vertical 280 m³/h recovery unit with built-in bypass for wall-mounting
  • 3+1V operation adjustable via the supplied remote touch panel
  • Bypass automatic operation
  • Filter alarm alert
  • Dimensions (LxHxW): 790x670x770mm, 43 Kg
    Aeraulic connections: 4x DN 160M opposite
    Condensate drain connection: Ø 20 mm
    Power supply: 230V/50Hz
    Double-panelled structure in galvanised sheet metal internally and externally painted RAL9003 with interposed insulation, thickness 20 mm, density 42 Kg/m³
    Backward-curved-blade radial centrifugal fans with EC motors with electronic speed control and low consumption
    High-efficiency polystyrene counter-current cross flow heat exchanger (code 5601.28.16 - 5602.28.16)
    Enthalpy exchanger (code 5621.28.16 - 5622.28.16)
    70% ePM1 class filters with low pressure drop
    Motorised by-pass with motor inserted in the electrical panel for easy maintenance

    Certifications:

    Features:

    AIRFLAT 280 V

    Code Model Description Pack Outer Cat.
    5601.28.16 AIRFLAT 280V-R 280m³/h, vert, right 1 1 30.09 ||56012816_LastPrice||
    5602.28.16 AIRFLAT 280V-L 280m³/h, vert,left 1 1 30.09 ||56022816_LastPrice||

    AIRFLAT 280 V ERV

    Code Model Description Pack Outer Cat.
    5621.28.16 AIRFLAT 280V-R-ERV 280m³/h, vert, right 1 1 30.09 ||56212816_LastPrice||
    5622.28.16 AIRFLAT 280V-L-ERV 280m³/h, vert,left 1 1 30.09 ||56222816_LastPrice||
