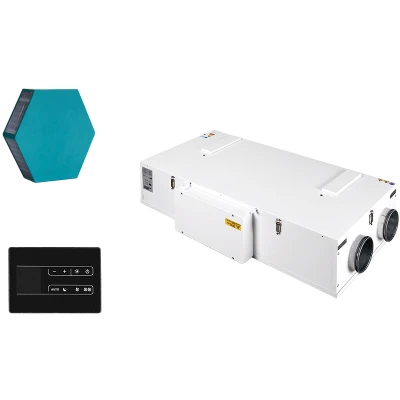

AIRFLAT 280H
280 m³/h high efficiency horizontal heat recovery unit
Series 5501.28
High-efficiency horizontal 280 m³/h recovery unit with built-in bypass for ceiling-mounting
3+1V operation adjustable via the supplied remote touch panel Bypass automatic operation Antifreeze function with flow imbalance Filter replacement alarm alert Connections 1 x 230V signal (out) for dampers, 2x signal DC for outdoor On/Off
Dimensions (LxHxD): 1150x290x650mm, 38kg |
Aeraulic connections: 4x DN 160M opposite |
Condensate drain connection: DN12 |
Power supply: 230V/50Hz |
Self-supporting sheet metal frame painted externally in RAL9003, with internal shaped EPS insulation with a density of 40 kg/m³ |
Brushless fans with electronic motor, modulating control and low consumption |
High-efficiency polystyrene counter-current cross flow heat exchanger (code 5501.28.16 - 5502.28.16) |
Enthalpy exchanger (code 5521.28.16 - 5522.28.16) |
Large condensate collection tank with anti-corrosion surface treatment and side drain |
Panels for replacing independent filters |
Fully disposable ePM1 70% filters |
Electronic adjustment sealed compartment |
IP44 |
3x built-in temperature probes |
Download
AIRFLAT 280H
Code | Model | Description | Pack | Outer | Cat. | € |
5501.28.16 | AIRFLAT 280H-R | 280m³/h, oriz, cfg dx (in) | 1 | 1 | 30.09 | ||55012816_LastPrice|| |
5502.28.16 | AIRFLAT 280H-L | 280m³/h, oriz, cfg sx (in) | 1 | 1 | 30.09 | ||55022816_LastPrice|| |
AIRFLAT 280H ERV
Code | Model | Description | Pack | Outer | Cat. | € |
5521.28.16 | AIRFLAT 280H-R-ERV | 280m³/h, oriz, cfg dx (in) | 1 | 1 | 30.09 | ||55212816_LastPrice|| |
5522.28.16 | AIRFLAT 280H-L-ERV | 280m³/h, oriz, cfg sx (in) | 1 | 1 | 30.09 | ||55222816_LastPrice|| |
