AIRFLAT 350 V | Series 5601.34

AIRFLAT 350 V

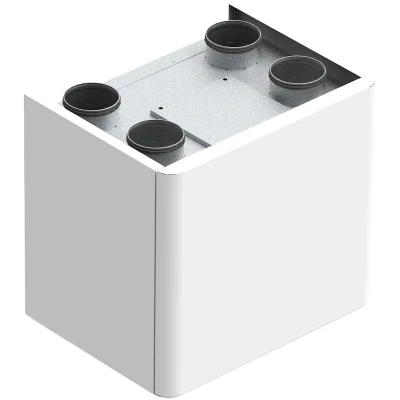

Very high efficiency 350 m³/h vertical heat recovery unit

Series 5601.34
High-efficiency vertical 350 m³/h recovery unit with built-in bypass for wall-mounting
  • 3+1V operation adjustable via the supplied remote touch panel
  • Bypass automatic operation
  • Filter alarm alert
  • Dimensions (LxHxW): 790x670x770mm, 42 Kg
    Aeraulic connections: 4x DN 160M opposite
    Condensate drain connection: Ø 20 mm
    Power supply: 230V/50Hz
    Double-panelled structure in galvanised sheet metal internally and externally painted RAL9003 with interposed insulation, thickness 20 mm, density 42 Kg/m³
    Backward-curved-blade radial centrifugal fans with EC motors with electronic speed control and low consumption
    High-efficiency polystyrene counter-current cross flow heat exchanger (code 5601.34.16 - 5602.34.16)
    Enthalpy exchanger (code 5621.34.16 - 5622.34.16)
    70% ePM1 class filters with low pressure drop
    Motorised by-pass with motor inserted in the electrical panel for easy maintenance

    Download

    Certifications:

    Features:

    AIRFLAT 350V

    Code Model Description Pack Outer Cat.
    56013416 AIRFLAT 350V-R 350m³/h, vert, cfg dx (in) 1 1 30.09 ||56013416_LastPrice||
    56023416 AIRFLAT 350V-L 350m³/h, vert, cfg sx (in) 1 1 30.09 ||56023416_LastPrice||

    AIRFLAT 350V ERV

    Code Model Description Pack Outer Cat.
    56213416 AIRFLAT 350V-R-ERV 350m³/h, vert, cfg dx (in) 1 1 30.09 ||56213416_LastPrice||
    56223416 AIRFLAT 350-V-L-ERV 350m³/h, vert, cfg sx (in) 1 1 30.09 ||56223416_LastPrice||
