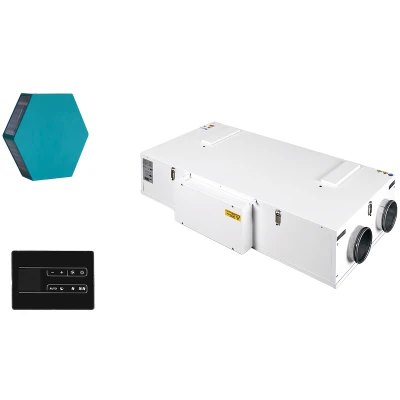

AIRFLAT 350H
360 m³/h high efficiency horizontal heat recovery unit
Series 5501.35
High-efficiency horizontal 360 m³/h recovery unit with built-in bypass for ceiling-mounting
3+1V operation adjustable via the supplied remote touch panel Bypass automatic operation Antifreeze function with flow imbalance Filter replacement alarm alert Connections 1 x 230V signal (out) for dampers, 2x signal DC for outdoor On/Off
| Dimensions (LxHxW): 1150x290x650mm, 39kg |
| Aeraulic connections: 4x DN 160M opposite |
| Condensate drain connection: DN12 |
| Power supply: 230V/50Hz |
| Self-supporting sheet metal frame painted externally in RAL9003, with internal shaped EPS insulation with a density of 40 kg/m³ |
| Brushless fans with electronic motor, modulating control and low consumption |
| High-efficiency polystyrene counter-current cross flow heat exchanger (code 5501.35.16 - 5502.35.16) |
| Enthalpy exchanger (code 5521.35.16 - 5522.35.16) |
| Large condensate collection tank with anti-corrosion surface treatment and side drain |
| Panels for replacing independent filters |
| Fully disposable ePM1 70% filters |
| Electronic adjustment sealed compartment |
| IP44 |
| 3x built-in temperature probes |
Download
Certifications:
Features:
#s# #s#
AIRFLAT 350H
| Code | Model | Description | Box | Carton | Cat. | € |
| 55013516 | AIRFLAT 350H-R | 350m³/h, horiz, rh cfg (in) | 1 | 1 | 30.09 | ||55013516_LastPrice|| |
| 55023516 | AIRFLAT 350H-L | 350m³/h, oriz, cfg sx (in) | 1 | 1 | 30.09 | ||55023516_LastPrice|| |
AIRFLAT 350H ERV
| Code | Model | Description | Box | Carton | Cat. | € |
| 55213516 | AIRFLAT 350H-R-ERV | 350m³/h, horiz, rh cfg (in) | 1 | 1 | 30.09 | ||55213516_LastPrice|| |
| 55223516 | AIRFLAT 350H-L-ERV | 350m³/h, oriz, cfg sx (in) | 1 | 1 | 30.09 | ||55223516_LastPrice|| |
Ceiling-mounted brackets and remote control included in the supply
