AIRFLAT 390H | Series 5501.39

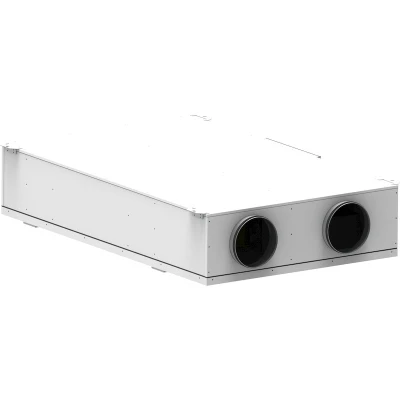

AIRFLAT 390H
390 m³/h high efficiency horizontal heat recovery unit

Series 5501.39
High-efficiency horizontal 390 m³/h recovery unit with built-in bypass for ceiling-mounting
  • 3+1V operation adjustable via the supplied remote touch panel
  • Bypass automatic operation
  • Filter alarm alert
  • Dimensions (LxHxD): 995x283x1478 mm, 65 Kg
    Aeraulic connections: 4x DN 200M opposite
    Condensate drain connection: Ø 18 mm
    Power supply: 230V/50Hz
    Self-supporting frame made of galvanised sheet metal panels, externally painted RAL9003 with internal insulation in EPS and high density polyethylene.
    Brushless fans with electronic motor and constant flow control and low consumption
    High-efficiency polystyrene counter-current cross flow heat exchanger (code 5501.39.16 - 5502.39.16)
    Enthalpy exchanger (code 5521.39.16 - 5522.39.16)
    Motorised by-pass with motor inserted in the electrical panel for easy maintenance

    Download

    Certifications:

    Features:

    AIRFLAT 390H

    Code Model Description Pack Outer Cat.
    5521.39.16 AIRFLAT 390H-R-ERV 390m³/h, horiz, cfg dx (in) 1 1 30.09 ||55213916_LastPrice||
    5522.39.16 AIRFLAT 390H-L-ERV 390m³/h, horiz, cfg sx (in) 1 1 30.09 ||55223916_LastPrice||

    AIRFLAT 390H ERV

    Code Model Description Pack Outer Cat.
    5521.39.16 AIRFLAT 390H-R-ERV 390m³/h, horiz, cfg dx (in) 1 1 30.09 ||55213916_LastPrice||
    5522.39.16 AIRFLAT 390H-L-ERV 390m³/h, horiz, cfg sx (in) 1 1 30.09 ||55223916_LastPrice||
