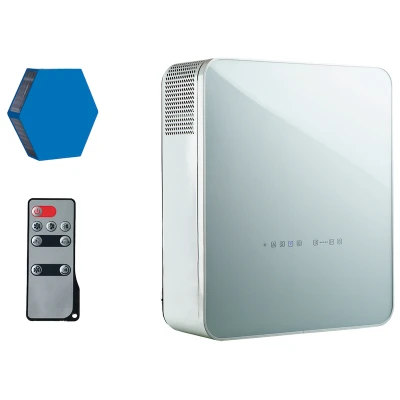

AIRSPOT22 100-ERV
ENTHALPY continuous dual-flow point heat recovery unit
Series 5422.11
Easy-to-install, continuous double flow ENTHALPIC spot recovery unit with a compact design
On/Off Day/Night Antifreeze protection Filter replacement alert Alarm alert Time band weekly programming Booster with timer function 5-speed adjustment = 30/44/60/75/100 m³/h
| Dimensions 650Lx550Hx220W, conn 2x DN 100F, weight 31kg |
| Low energy consumption (max 53W), forward-curved-blades, low noise EC fans |
| Enthalpy exchanger |
| Painted sheet casing with moulded EPP internal insulation (min thickness 10mm) |
| Built-in automatic IMM/ESP shutters |
| F8/G4 filters with antibacterial treatment |
| Built-in LED touch control panel |
| Built-in twilight sensor |
| Built-in RH sensor |
| IP22 protection rating |
| Power supply 1~230V/50Hz |
Download
Certifications:
Features:
AIRSPOT22 100-ERV
| Code | Model | Description | Pack | Pallet m | Cat. | €/m |
| 54221111 | SPOT22 100-2.2-ERV | 100 m³/h, double flow, ERV, adj2.2 | 1 | 1 | 30.09 | ||54221111_LastPrice|| |
| 54251111 | SPOT22 100-2.5-ERV | 100 m³/h, double flow, ERV, adj2.5WiFi | 1 | 1 | 30.09 | ||54251111_LastPrice|| |
IR remote control
included in supply
