Arno

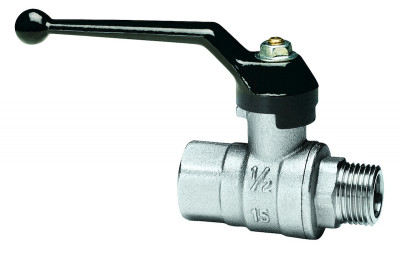

Heavy duty full bore ball valve with lever handle
Series 3373
Heavy full bore ball valve, lever handle operated, MF connections. Suitable for water, water+ glycol, steam, hydrocarbons.
| Nickel brass body. |
| Thick chrome plated brass ball. |
| PTFE seal. |
| Threaded connections UNI-EN-ISO-228. |
| Operating temperature with water -20 - + 120 °C |
Download
Certifications:
PED | ACS
CE certification only for sizes marked with an asterisk.
Heavy full bore ball valve, lever handle operated, MF connections
| Code | Measure | PN | Pack | Outer | Cat. | € |
| 337314NI | 1/4" | 40 | 10 | 160 | 08.01 | ||337314NI_LastPrice|| |
| 337338NI | 3/8" | 40 | 10 | 160 | 08.01 | ||337338NI_LastPrice|| |
| 337312NI | 1/2" | 40 | 10 | 120 | 08.01 | ||337312NI_LastPrice|| |
| 337334NI | 3/4" | 40 | 6 | 48 | 08.01 | ||337334NI_LastPrice|| |
| 337310NI | 1" | 40 | 4 | 48 | 08.01 | ||337310NI_LastPrice|| |
| 337304NI | 1"1/4 * | 40 | 4 | 32 | 08.01 | ||337304NI_LastPrice|| |
| 337302NI | 1"1/2 * | 40 | 2 | 20 | 08.01 | ||337302NI_LastPrice|| |
| 337320NI | 2" * | 40 | 2 | 10 | 08.01 | ||337320NI_LastPrice|| |
