Arno

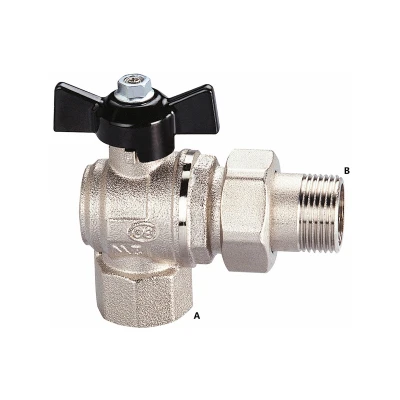

Heavy full bore angled ball valve
Series 3386
Heavy full bore angled ball valve, butterfly handle operated, F connection with M union. Suitable for water, water+ glycol, steam, hydrocarbons.
| Nickel brass body. |
| Thick chrome plated brass ball. |
| PTFE seal. |
| Threaded connections UNI-EN-ISO 228. |
| Operating temperature with water -20 - + 120 °C |
Download
Certifications:
Heavy full bore angle ball valve, butterfly handle operated, F connection with M inlet coupling
| Code | Size A | Size B | PN | Pack | Outer | Cat. | € |
| 3386 09NI | 1/2" | 1/2" | 40 | 10 | 120 | 08.01 | ||338609NI_LastPrice|| |
| 3386 A1NI | 3/4" | 3/4" | 40 | 5 | 60 | 08.01 | ||3386A1NI_LastPrice|| |
| 3386 A2NI | 1" | 1" | 40 | 4 | 40 | 08.01 | ||3386A2NI_LastPrice|| |
