D-EXT

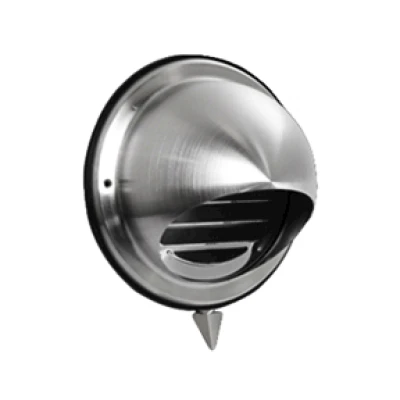

External grid with anti-insect net and rainproof fins with deflector bearing
Series 4022
External grid with anti-insect net and rainproof fins with deflector bearing
Can be used for external air inlet/ejection.
Fastening clip on the neck to be fitted at the same angle as the plug-in to improve sealing.
External finish consisting of an anti-insect net and blades to tilt the flow.
An additional external bearing allows for inlet/ejection in a close position by directing the flows divergently.
| Stainless steel external wall grid for maximum rigidity and corrosion resistance. |
Download
External grids with deflector bearing
| Code | Model | Description | Pack | Outer | Cat. | € |
| 40220912 | DEXT-12 | DN125M, inox | 1 | 18 | 30.09 | ||40220912_LastPrice|| |
| 40220916 | DEXT-16 | DN160M, inox | 1 | 12 | 30.09 | ||40220916_LastPrice|| |
| 40220920 | DEXT-20 | DN200M, inox | 1 | 12 | 30.09 | ||40220920_LastPrice|| |
