Domestic Monoblock D.M.
Manifold to be used for distribution in domestic water systems
Series 903
Manifold to be used for distribution in domestic water systems. Main connections complete with shut-off valves. With inspection box complete with removable cover and plastering protection. Flush mount installation.
| Nickel-plated brass manifold body. |
| Elastomer seals. |
| Shockproof ABS cap, ring nut and box |
| Side distribution connections, centre distance 37 mm threaded M standard RBM for copper, polyethylene and multilayer pipe fittings. |
| Euroconus G3/4" threaded main connections, centre distance 50mm; for copper, polyethylene, multilayer pipes. |
| Max operating temperature 95 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
DHW

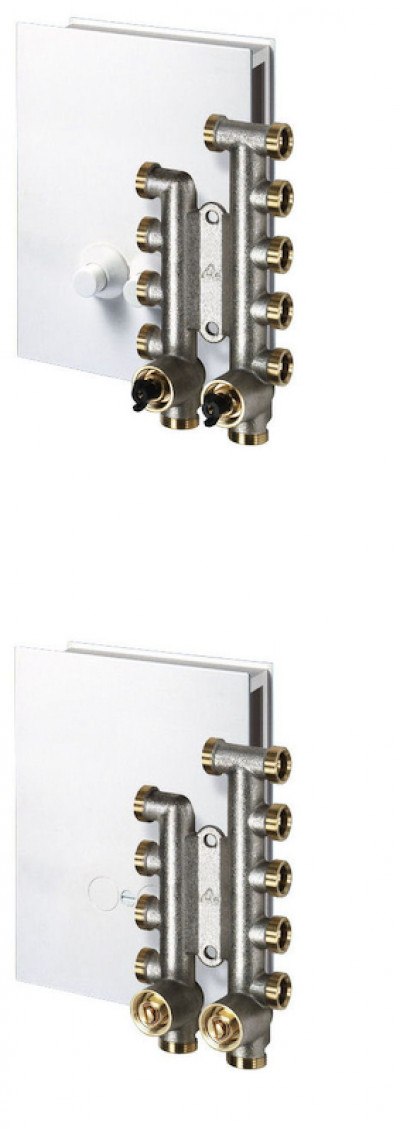

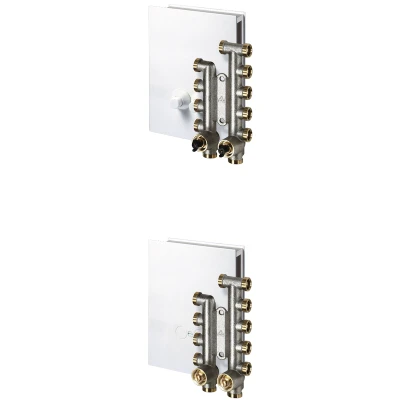

Manifold with butterfly handwheel adjustment, case with external knob on cover
| Code | Ways | Pack | Outer | Cat. | € |
| 09030050 | 4+6 | 1 | 10 | 05.01 | ||09030050_LastPrice|| |
Manifold with screwdriver adjustment, case without knob
| Code | Ways | Pack | Outer | Cat. | € |
| 09030060 | 6+4 | 1 | 10 | 05.01 | ||09030060_LastPrice|| |
Replaceable screw unit.
See spare parts pricelist.
Use fittings with Euroconus G3/4" thread for the pipe side main connections.
Use fittings with Standard RBM thread for the junctions side pipe connections.
