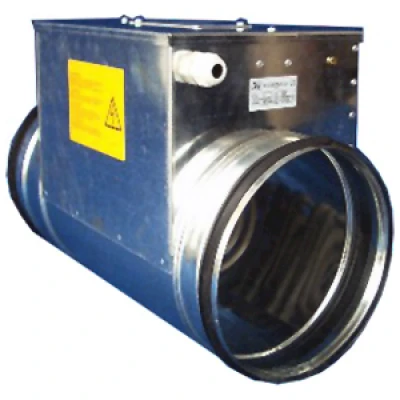

EL-HE | Series 5911

EL-HE
Electric pre-heating coil with built-in adjustment

Series 5911
Electric pre-heating coil with built-in adjustment
Galvanised sheet body.
Stainless steel heating elements.
Double protection thermostat: at T>50°C with automatic reset, at T>90°C with manual reset
Built-in trimmer and temperature sensor. Option of externally controlling adjustment via 0-10V signal.
At least 2xDN to be installed on straight upstream and downstream sections to stabilise the flow rate.

Certifications:

Electric duct coils

Code Model Description Pack Outer Cat.
5911.08.12 ELHE-12 DN125, 0.8kW 1 1 60.01 ||59110812_LastPrice||
5911.12.16 ELHE-16 DN160, 1.2kW 1 1 60.01 ||59111216_LastPrice||
5911.20.20 ELHE-20 DN200, 2.0kW 1 1 60.01 ||59112020_LastPrice||
