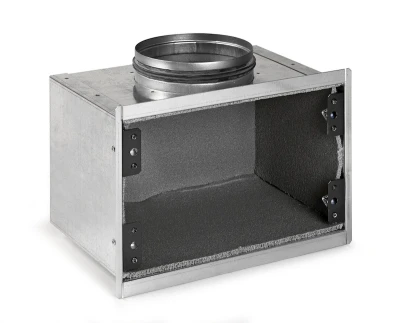

FLX-BOX
Insulated nozzle plenum with connection for flex pipe
Series 4212
Insulated nozzle plenum with connection for flex pipe
| Made of galvanised sheet internally coated with 4-mm thick insulation (λ=0.0420W/mK). |
| Black painted slots with clips on the front for coupling with 5311.A-B-C-D and 5312.A-B-C-D series grids |
| Dimensions: FLXBOX 1/125 (LxHxD): 347x240x181mm |
| Dimensions: FLXBOX 1/160 (LxHxD): 347x240x221mm |
Download
90-degree angle single plenums for grids
| Code | Model | Description | Box | Carton | Cat. | € |
| 42123626 | FLXBOX 1/125 | 1x DN 125mm, 300x200mm | 1 | 1 | 30.09 | ||42123626_LastPrice|| |
| 42163626 | FLXBOX 1/160 | 1x DN 160mm, 300x200mm | 1 | 1 | 30.09 | ||42163626_LastPrice|| |
Mounting brackets included in the supply.
Abbinabile a tubi circolari flessibili spiralati serie 4311 e 4411.
Abbinabile a griglia serie 5311.C e 5312.C.
