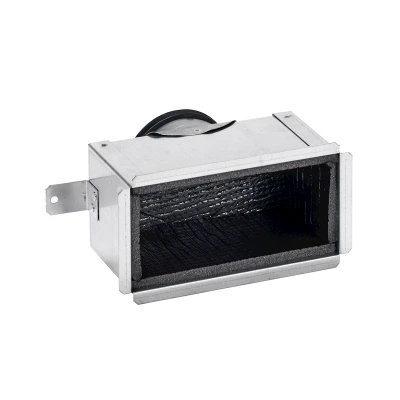

FLXBOX 2010
Air distribution plenum with perimeter bend and internal insulation.
Series 4210
Air distribution plenum with perimeter bend and internal insulation.
| Construction in galvanised steel, self-adhesive panel insulation in 6mm thick polyethylene foam. |
| Neck DN 100M with o-ring. |
| Protruding, deformable slots on various sides to easily accommodate any installations. |
| Dimensions: FLXBOX 2010 (LxHxD): 224x124x100 mm (neck 200x100 mm) |
Download
Nozzle plenum
| Code | Model | Description | Box | Cat. | € |
| 42102111 | FLX-BOX 2010 | 1x DN 100M => 200x100mm | 1 | 30.09 | ||42102111_LastPrice|| |
| 42103111 | FLX-BOX 3010 | 2x DN 100M => 310x110mm | 1 | 30.09 | ||42103111_LastPrice|| |
Mounting brackets included in the supply.
Can be combined with 4311 and 4411 series spiral flexible circular pipes.
Can be combined with 5303 series delivery grille.
