GRID 4030-5040 | Series 5304

GRID 4030-5040

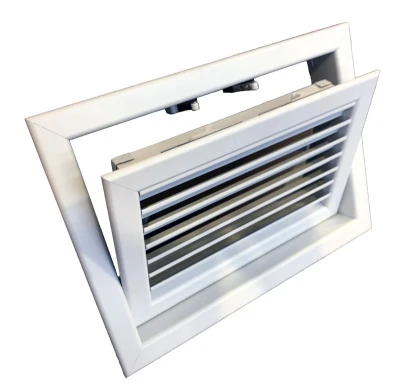

Filter holder recirculation grid with quick uncoupling

Series 5304
Filter holder recirculation grid with quick uncoupling.
Single order return grid with 45° sloped fixed fins.
25 mm perimeter frame in combination with 5026.B series recirculation plenum, fin pitch 20 mm.
Construction in anodised extruded aluminium profiles, natural or painted RAL 9016.
Standard fastening with retractable springs.
Dimensions (LXHXD): GRID-4030 : 432x332x45 mm (neck 385x285mm)
Dimensions (LXHXD): GRID-5040 : 532x432x45 mm (neck 485x385 mm)

Recirculation grid

Code Model Description Pack Cat.
5304.40.30 GRID 4030 400x300mm, RAL 9016 1 30.09 ||53044030_LastPrice||
5304.50.40 GRID 5040 500x400mm, RAL9016 1 30.09 ||53045040_LastPrice||

Grid holder plenum

Code Model Description Pack Cat.
5026.41.31 FL BOX 4030 1XDN 160X GRID430 1 30.09 ||50264131_LastPrice||
