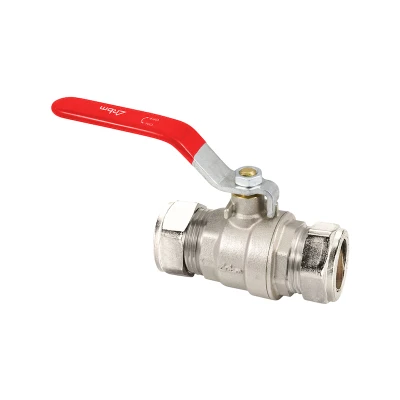

Standard bore ball valve, lever handle operated
Series 2093.A
Standard bore ball valve, lever handle operated, copper pipe end connections. Suitable for water, water+glycol.
| Nickel brass body. |
| Thick chrome plated brass ball. |
| PTFE seal. |
| Elastomer OR gaskets. |
| Copper pipe end connections. |
| Operating temperature with water -20 - +120 °C (without steam) |
Download
Standard bore ball valve, lever handle operated, copper pipe end connections
| Code | Measure | PN | Pack | Outer | Cat. | € |
| 20931520 | 15 | 50 | 15 | 60 | 08.01 | ||20931520_LastPrice|| |
| 20932220 | 22 | 50 | 10 | 40 | 08.01 | ||20932220_LastPrice|| |
| 20932820 | 28 | 40 | 6 | 24 | 08.01 | ||20932820_LastPrice|| |
| 20933520 | 35 | 30 | 4 | 40 | 08.01 | ||20933520_LastPrice|| |
| 20935420 | 54 | 25 | 1 | 4 | 08.01 | ||20935420_LastPrice|| |
The measurement is expressed in mm
