Iro

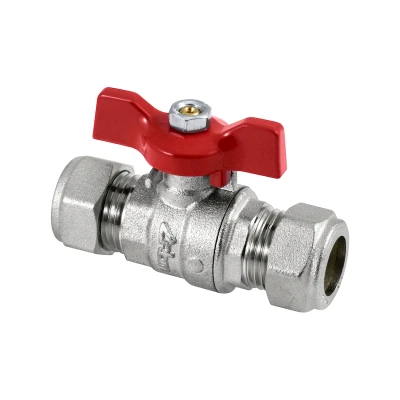

Standard bore ball valve, butterfly handle operated
Series 2093.B
Standard bore ball valve, butterfly handle operated, copper pipe end connections. Suitable for water, water+glycol.
| Nickel brass body. |
| Thick chrome plated brass ball. |
| PTFE seal. |
| Elastomer OR gaskets. |
| Copper pipe end connections. |
| Operating temperature with water -20 - +120 °C (without steam) |
Download
Certifications:
Standard bore ball valve, butterfly handle operated, copper pipe end connections
| Code | Measure | PN | Pack | Outer | Cat. | € |
| 20931500 | 15 | 50 | 20 | 80 | 08.01 | ||20931500_LastPrice|| |
| 20932200 | 22 | 50 | 12 | 80 | 08.01 | ||20932200_LastPrice|| |
| 20932800 | 28 | 40 | 6 | 24 | 08.01 | ||20932800_LastPrice|| |
| 20933500 | 35 | 30 | 4 | 16 | 08.01 | ||20933500_LastPrice|| |
The measurement is expressed in mm
