Standard bore ball valve, butterfly handle operated
Series 67.C
Standard bore ball valve, butterfly handle operated, F connection with M union coupling. Suitable for water, water+glycol.
| Nickel-plated brass body. |
| Thick chrome plated brass ball. |
| PTFE seal. |
| Elastomer OR gaskets. |
| Threaded connections UNI-EN-ISO 228. |
| Operating temperature with water -20 ÷ +120 °C (without steam) |
Download
Certifications:
DHW

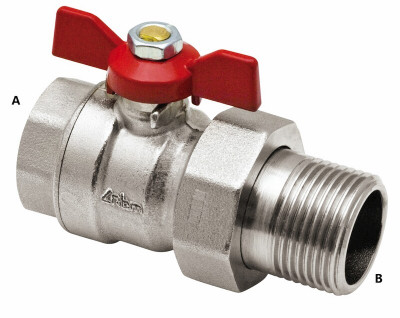

Standard bore ball valve, butterfly handle operated, F connection with M inlet coupling
| Code | Size A | Size B | PN | Box | Carton | Cat. | € |
| 00670402 | 1/2" | 1/2" | 25 | 20 | 80 | 08.01 | ||00670402_LastPrice|| |
| 00670502 | 3/4" | 3/4" | 25 | 12 | 48 | 08.01 | ||00670502_LastPrice|| |
| 00670602 | 1" | 1" | 25 | 6 | 24 | 08.01 | ||00670602_LastPrice|| |
| 00670702 | 1"1/4 | 1"1/4 | 25 | 4 | 16 | 08.01 | ||00670702_LastPrice|| |
