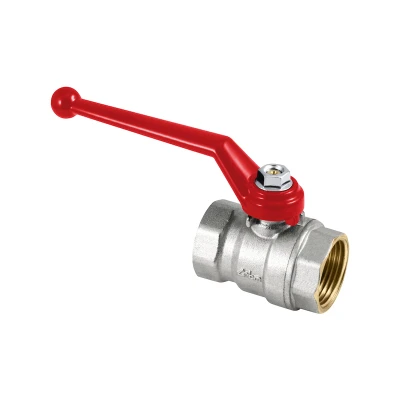

Standard bore ball valve, lever handle operated
Series 854.A
Standard bore ball valve, lever handle operated, FF connections. Suitable for water, water+glycol.
| Nickel brass body. |
| Thick chrome plated brass ball. |
| PTFE seal. |
| Elastomer OR gaskets. |
| Threaded connections UNI-EN-ISO 228. |
| Operating temperature with water -20 - +120 °C (without steam) |
Download
Certifications:
Standard bore ball valve, lever handle operated, FF connections
| Code | Measure | PN | Pack | Outer | Cat. | € |
| 855.03.32* | 3/8" | 50 | 20 | 80 | 08.01 | ||08550332_LastPrice|| |
| 854.04.32 | 1/2" | 50 | 15 | 90 | 08.01 | ||08540432_LastPrice|| |
| 854.05.32 | 3/4" | 50 | 12 | 48 | 08.01 | ||08540532_LastPrice|| |
| 854.06.32 | 1" | 40 | 6 | 36 | 08.01 | ||08540632_LastPrice|| |
| 854.07.32 | 1"1/4 | 30 | 6 | 24 | 08.01 | ||08540732_LastPrice|| |
| 854.08.32 | 1"1/2 | 25 | 2 | 12 | 08.01 | ||08540832_LastPrice|| |
| 854.09.32 | 2" | 25 | 2 | 8 | 08.01 | ||08540932_LastPrice|| |
*Full bore
