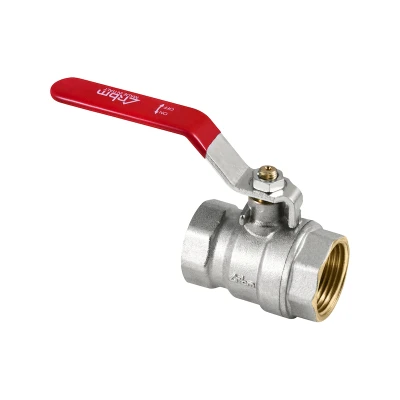

Standard bore ball valve, lever handle operated
Series 854.B
Standard bore ball valve, lever handle operated, FF connections. Suitable for water, water+glycol.
| Nickel-plated brass body. |
| Thick chrome plated brass ball. |
| PTFE seal. |
| Elastomer OR gaskets. |
| Threaded connections UNI-EN-ISO 228. |
| Operating temperature with water -20 ÷ +120 °C (without steam) |
Download
Certifications:
DHW
Standard passage ball valve, lever handle actuation, FF connections - Red
| Code | Size | PN | Box | Carton | Cat. | € |
| 08550342* | 3/8" | 50 | 20 | 80 | 08.01 | ||08550342_LastPrice|| |
| 08540442 | 1/2" | 50 | 15 | 90 | 08.01 | ||08540442_LastPrice|| |
| 08540542 | 3/4" | 50 | 12 | 48 | 08.01 | ||08540542_LastPrice|| |
| 08540642 | 1" | 40 | 6 | 36 | 08.01 | ||08540642_LastPrice|| |
| 08540742 | 1"1/4 | 30 | 6 | 24 | 08.01 | ||08540742_LastPrice|| |
| 08540842 | 1"1/2 | 25 | 2 | 12 | 08.01 | ||08540842_LastPrice|| |
| 08540942 | 2" | 25 | 2 | 8 | 08.01 | ||08540942_LastPrice|| |
*Full bore
