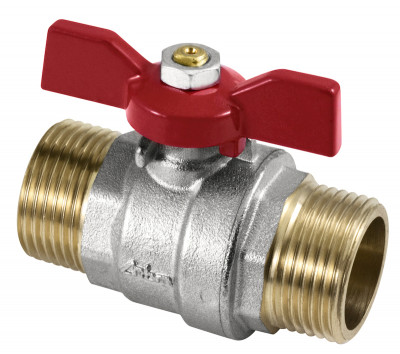

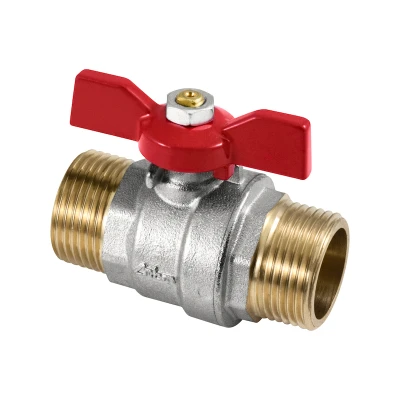

Standard bore ball valve, butterfly handle operated
Series 885.C
Standard bore ball valve, butterfly handle operated, MM connections. Suitable for water, water+glycol.
| Nickel-plated brass body. |
| Thick chrome plated brass ball. |
| PTFE seal. |
| Elastomer OR gaskets. |
| Threaded connections UNI-EN-ISO 228. |
| Operating temperature with water -20 ÷ +120 °C (without steam) |
Download
Certifications:
DHW
#s# #s#
#s# #s#
WRAS solo per il codice 08850542
Standard pass ball valve, butterfly handle actuation, MM connections - Red
| Code | Size | PN | Box | Carton | Cat. | € |
| 08850342* | 3/8" | 50 | 20 | 80 | 08.01 | ||08850342_LastPrice|| |
| 08850442 | 1/2" | 50 | 15 | 60 | 08.01 | ||08850442_LastPrice|| |
| 08850542 | 3/4" | 50 | 12 | 48 | 08.01 | ||08850542_LastPrice|| |
| 08850642 | 1" | 40 | 6 | 36 | 08.01 | ||08850642_LastPrice|| |
*Full bore
