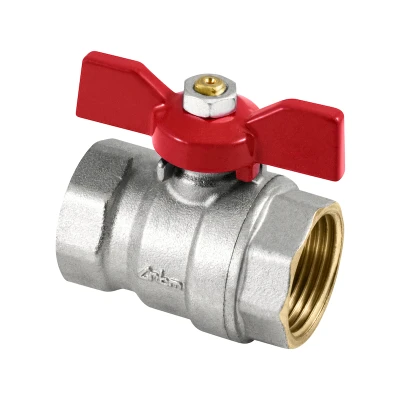

Standard bore ball valve, butterfly handle operated
Series 989
Standard bore ball valve, butterfly handle operated, FF connections. Suitable for water, water+glycol.
| Nickel-plated brass body. |
| Thick chrome plated brass ball. |
| PTFE seal. |
| Elastomer OR gaskets. |
| Threaded connections UNI-EN-ISO 228. |
| Operating temperature with water -20 ÷ +120 °C (without steam) |
Download
Certifications:
DHW
Standard bore ball valve, butterfly handle operated, FF connections
| Code | Size | PN | Box | Carton | Cat. | € |
| 09890332* | 3/8" | 50 | 20 | 80 | 08.01 | ||09890332_LastPrice|| |
| 09890432 | 1/2" | 50 | 15 | 90 | 08.01 | ||09890432_LastPrice|| |
| 09890532 | 3/4" | 50 | 12 | 48 | 08.01 | ||09890532_LastPrice|| |
| 09890632 | 1" | 40 | 6 | 36 | 08.01 | ||09890632_LastPrice|| |
| 09890732 | 1"1/4 | 30 | 8 | 24 | 08.01 | ||09890732_LastPrice|| |
*Full bore
