KILMA-ECOMIX-RF | Series 3524

KILMA-ECOMIX-RF
Fixed Point Control Unit - Kilma-ECOMIX-RF

Series 3524

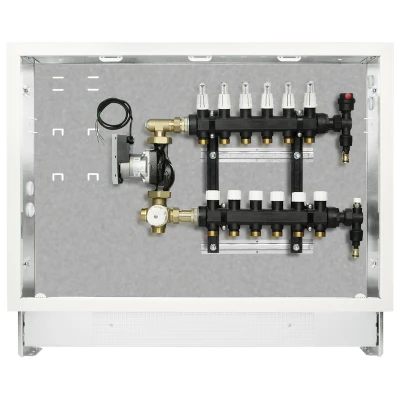

Kilma-ECOMIX RF series Fixed Point control unit
Distribution unit for low temperature circuits consisting of: specific manifolds, circulation pump, thermostatic mixer, all placed in a metal case with door designed for recessed installation. Includes: delivery control flowmeters, valves with thermostatic option on return, 1 automatic air vent/degasser valve fitted with a connection to fill the system and 1 air discharge manual unit.
G 1" system side connections
Centre distance of connections on the diverter line of the low temperature manifold 50 mm, Euroconus G 3/4" threaded connections

Kilma ECOMIX-RF

Code Measure Ways Width (mm) Height (mm) Pack Outer Cat.
3524.06.90 1" 3+3 800 700÷820 1 1 30.02 ||35240690_LastPrice||
3525.06.90 1" 4+4 800 700÷820 1 1 30.02 ||35250690_LastPrice||
3526.06.90 1" 5+5 800 700÷820 1 1 30.02 ||35260690_LastPrice||
3527.06.90 1" 6+6 800 700÷820 1 1 30.02 ||35270690_LastPrice||
3528.06.90 1" 7+7 1000 700÷820 1 1 30.02 ||35280690_LastPrice||
3529.06.90 1" 8+8 1000 700÷820 1 1 30.02 ||35290690_LastPrice||
3530.06.90 1" 9+9 1000 700÷820 1 1 30.02 ||35300690_LastPrice||
3531.06.90 1" 10+10 1000 700÷820 1 1 30.02 ||35310690_LastPrice||
3532.06.90 1" 11+11 1200 700÷820 1 1 30.02 ||35320690_LastPrice||
3533.06.90 1" 12+12 1200 700÷820 1 1 30.02 ||35330690_LastPrice||

high performance adjustable flow pump EEI<0.23 - ERP 622/2012
