KILMA-ECONBLOCK RF-AT Polymer
Fixed Point Control Unit - Kilma-ECONBLOCK RF-AT Polymer
Series 1531.D

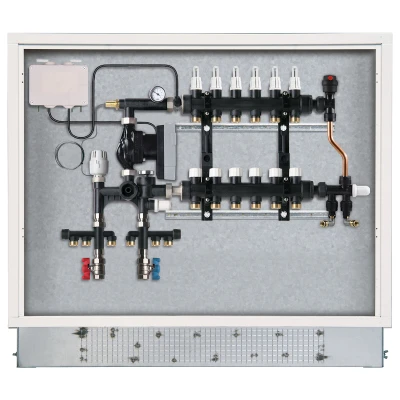

Fixed Point control unit Kilma-ECONBLOCK RF-AT series in Polymer
| Distribution control unit for low and high temperature circuits consisting of: specific manifolds, circulation pump, mixing manifold, including non-return valve and control return unit; fixed point control through injection valve with thermostatic head internal probe (low temperature flow), immersion safety thermostat, all housed in a built-in metal case with locking hatch. Including: supply control flow meters, delivery thermometer, thermostatic valves on return, 1 automatic air vent valve / air separator valve, adjustable by-pass unit equipped with connections for system filling, 2 shut-off ball valves. |
| Model recommended for use with electrothermic heads. |
| Centre distance between attachments on the plant side 111 mm. |
| Centre distance between outlet connections for high temperature 37 mm, Standard threaded RBM connections |
| Centre distance of connections on the diverter line of the low temperature manifold 50 mm, Euroconus G 3/4" threaded connections |
Download
Kilma ECONBLOCK RF-AT polymer
| Code | Measure | Ways | Width (mm) | Height (mm) | Pack | Outer | Cat. | € |
| 15310670 | 1" | 3+3 | 800 | 700÷820 | 1 | 1 | 30.02 | ||15310670_LastPrice|| |
| 15320670 | 1" | 4+4 | 800 | 700÷820 | 1 | 1 | 30.02 | ||15320670_LastPrice|| |
| 15330670 | 1" | 5+5 | 800 | 700÷820 | 1 | 1 | 30.02 | ||15330670_LastPrice|| |
| 15340670 | 1" | 6+6 | 800 | 700÷820 | 1 | 1 | 30.02 | ||15340670_LastPrice|| |
| 15350670 | 1" | 7+7 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||15350670_LastPrice|| |
| 15360670 | 1" | 8+8 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||15360670_LastPrice|| |
| 15370670 | 1" | 9+9 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||15370670_LastPrice|| |
| 15380670 | 1" | 10+10 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||15380670_LastPrice|| |
| 15390670 | 1" | 11+11 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||15390670_LastPrice|| |
| 15400670 | 1" | 12+12 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||15400670_LastPrice|| |
high performance adjustable flow pump EEI<0.23 - ERP 622/2012
Use fittings with Standard RBM thread for pipe connection to the H.T. manifold.
Use Euroconus fittings with G 3/4" thread (see page
