KILMA-ECONBLOCK RF-AT | Series 701.D

KILMA-ECONBLOCK RF-AT
Fixed Point Control Unit

Series 701.D

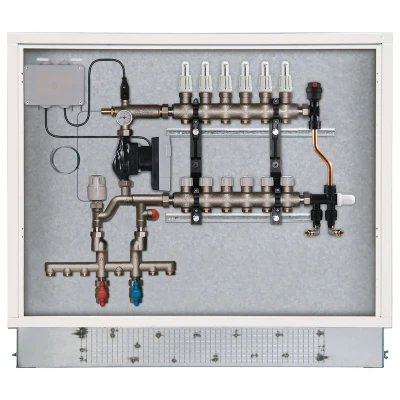

Fixed Point control unit Kilma-ECONBLOCK RF-AT series
Distribution control unit for low and high temperature circuits consisting of: specific manifolds, circulation pump, mixing manifold, including non-return valve and control return unit; fixed point control through injection valve with thermostatic head internal probe (low temperature flow), immersion safety thermostat, all housed in a built-in metal case with locking hatch. Including: supply control flow meters, delivery thermometer, valves with thermostatic option on return,, 1 automatic air vent valve / air separator valve, adjustable by-pass unit equipped with connections for system filling, 2 shut-off ball valves.
Model recommended for use with electrothermic heads.
Centre distance between attachments on the plant side 90 mm.
Centre distance of connections on the diverter line of the high temperature manifold 45 mm, Euroconus G 3/4" threaded connections
Centre distance of connections on the diverter line of the low temperature manifold 50 mm, Euroconus G 3/4" threaded connections

Download

Kilma ECONBLOCK RF-AT

Code Measure Ways Width (mm) Height (mm) Pack Outer Cat.
701.06.60 1" 3+3 800 700÷820 1 1 30.02 ||07010660_LastPrice||
702.06.60 1" 4+4 800 700÷820 1 1 30.02 ||07020660_LastPrice||
703.06.60 1" 5+5 800 700÷820 1 1 30.02 ||07030660_LastPrice||
704.06.60 1" 6+6 800 700÷820 1 1 30.02 ||07040660_LastPrice||
705.06.60 1" 7+7 1000 700÷820 1 1 30.02 ||07050660_LastPrice||
706.06.60 1" 8+8 1000 700÷820 1 1 30.02 ||07060660_LastPrice||
707.06.60 1" 9+9 1000 700÷820 1 1 30.02 ||07070660_LastPrice||
708.06.60 1" 10+10 1200 700÷820 1 1 30.02 ||07080660_LastPrice||
709.06.60 1" 11+11 1200 700÷820 1 1 30.02 ||07090660_LastPrice||
709.12.60 1" 12+12 1200 700÷820 1 1 30.02 ||07091260_LastPrice||

high performance adjustable flow pump EEI<0.23 - ERP 622/2012
