KILMA-ECONBLOCK RF Polymer
Fixed Point Control Unit - Kilma-ECONBLOCK RF Polymer
Series 1531.C

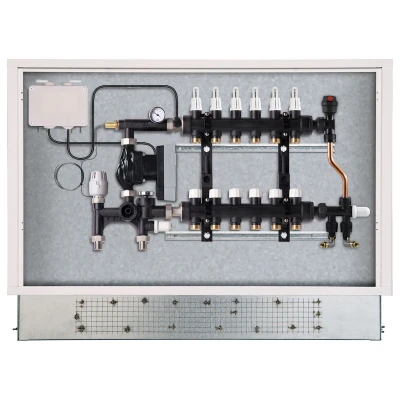

Fixed Point control unit Kilma-ECONBLOCK RF series in Polymer
| Distribution control unit for low temperature circuits consisting of: specific manifolds, circulation pump, mixing manifold, including non-return valve and control return unit; fixed point control through injection valve with thermostatic head internal probe (low temperature flow), immersion safety thermostat, all housed in a built-in metal case with locking hatch. Including: flow control meters, flow thermometer, valves with thermostatic option on return, 1 automatic air vent valve / air separator valve, adjustable by-pass valve equipped with connections for system filling. |
| Model recommended for use with electrothermic heads. |
| Centre distance between attachments on the plant side 111 mm. |
| Centre distance of connections on the diverter line of the low temperature manifold 50 mm, Euroconus G 3/4" threaded connections |
Download
Kilma ECONBLOCK RF polymer
| Code | Measure | Ways | Width (mm) | Height (mm) | Pack | Outer | Cat. | € |
| 15310650 | 1" | 3+3 | 800 | 700÷820 | 1 | 1 | 30.02 | ||15310650_LastPrice|| |
| 15320650 | 1" | 4+4 | 800 | 700÷820 | 1 | 1 | 30.02 | ||15320650_LastPrice|| |
| 15330650 | 1" | 5+5 | 800 | 700÷820 | 1 | 1 | 30.02 | ||15330650_LastPrice|| |
| 15340650 | 1" | 6+6 | 800 | 700÷820 | 1 | 1 | 30.02 | ||15340650_LastPrice|| |
| 15350650 | 1" | 7+7 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||15350650_LastPrice|| |
| 15360650 | 1" | 8+8 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||15360650_LastPrice|| |
| 15370650 | 1" | 9+9 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||15370650_LastPrice|| |
| 15380650 | 1" | 10+10 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||15380650_LastPrice|| |
| 15390650 | 1" | 11+11 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||15390650_LastPrice|| |
| 15400650 | 1" | 12+12 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||15400650_LastPrice|| |
high performance adjustable flow pump EEI<0.23 - ERP 622/2012
Use Euroconus fittings with G 3/4" thread (see page
