KILMA-ECONBLOCK RF
Fixed Point Control Unit - Kilma-ECONBLOCK RF
Series 701.C
Fixed Point control unit Kilma-ECONBLOCK RF series

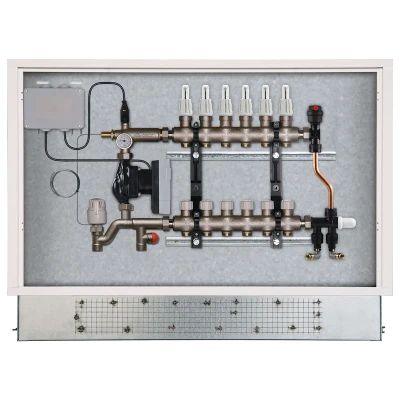

| Distribution control unit for low temperature circuits consisting of: specific manifolds, circulation pump, mixing manifold, including non-return valve and control return unit; fixed point control through injection valve with thermostatic head internal probe (low temperature flow), immersion safety thermostat, all housed in a built-in metal case with locking hatch. Including: flow control meters, flow thermometer, valves with thermostatic option on return, 1 automatic air vent valve / air separator valve, adjustable by-pass valve equipped with connections for system filling. |
| Model recommended for use with electrothermic heads. |
| Centre distance between attachments on the plant side 111 mm. |
| Centre distance of connections on the diverter line of the low temperature manifold 50 mm, Euroconus G 3/4" threaded connections |
Download
Kilma ECONBLOCK RF
| Code | Measure | Ways | Width (mm) | Height (mm) | Pack | Outer | Cat. | € |
| 07010650 | 1" | 3+3 | 800 | 700÷820 | 1 | 1 | 30.02 | ||07010650_LastPrice|| |
| 07020650 | 1" | 4+4 | 800 | 700÷820 | 1 | 1 | 30.02 | ||07020650_LastPrice|| |
| 07030650 | 1" | 5+5 | 800 | 700÷820 | 1 | 1 | 30.02 | ||07030650_LastPrice|| |
| 07040650 | 1" | 6+6 | 800 | 700÷820 | 1 | 1 | 30.02 | ||07040650_LastPrice|| |
| 07050650 | 1" | 7+7 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||07050650_LastPrice|| |
| 07060650 | 1" | 8+8 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||07060650_LastPrice|| |
| 07070650 | 1" | 9+9 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||07070650_LastPrice|| |
| 07080650 | 1" | 10+10 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||07080650_LastPrice|| |
| 07090650 | 1" | 11+11 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||07090650_LastPrice|| |
| 07091250 | 1" | 12+12 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||07091250_LastPrice|| |
high performance adjustable flow pump EEI<0.23 - ERP 622/2012
Use Euroconus fittings with G 3/4" thread (see page
