KILMA-EVO-RF4
Fixed Point Control Unit - Kilma-EVO-RF4
Series 770.D

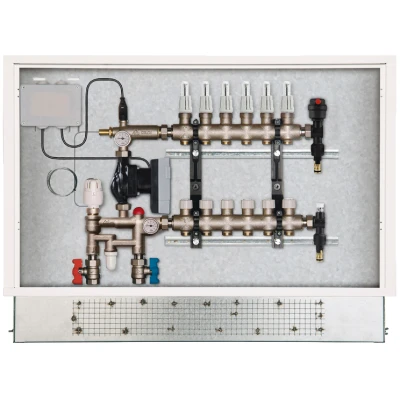

Fixed Point Control Unit Kilma-EVO-RF4 series
| Control unit for low temperature circuits consisting of: Specific manifolds, circulation pump and injection unit integrated together; fixed value adjustment, by means of injection valve with thermostatic head, internal sensor (low temperature delivery), safety thermostat with well, all housed in a recessed metal cabinet with locking hatch; Including: supply control flow meters, thermostatically controlled valves on the return line, 1 automatic air vent valve /degasser, equipped with connections for system filling, 1 air manual discharge unit, system loading, 2 shut-off ball valves, thermometers for reading delivery and return temperatures. |
| Centre distance between attachments on the plant side 111 mm. |
| Centre distance of connections on the diverter line of the low temperature manifold 50 mm, Euroconus G 3/4" threaded connections |
Download
KILMA-EVO-RF4
| Code | Size | Ways | Width (mm) | Height (mm) | Box | Carton | Cat. | € |
| 07700690 | 1" | 3+3 | 800 | 700÷820 | 1 | 1 | 30.02 | ||07700690_LastPrice|| |
| 07710690 | 1" | 4+4 | 800 | 700÷820 | 1 | 1 | 30.02 | ||07710690_LastPrice|| |
| 07720690 | 1" | 5+5 | 800 | 700÷820 | 1 | 1 | 30.02 | ||07720690_LastPrice|| |
| 07730690 | 1" | 6+6 | 800 | 700÷820 | 1 | 1 | 30.02 | ||07730690_LastPrice|| |
| 07740690 | 1" | 7+7 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||07740690_LastPrice|| |
| 07750690 | 1" | 8+8 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||07750690_LastPrice|| |
| 07760690 | 1" | 9+9 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||07760690_LastPrice|| |
| 07770690 | 1" | 10+10 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||07770690_LastPrice|| |
| 07780690 | 1" | 11+11 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||07780690_LastPrice|| |
| 07781290 | 1" | 12+12 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||07781290_LastPrice|| |
| 07781390 | 1" | 13+13 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||07781390_LastPrice|| |
High performance adjustable flow pump EEI<0.23 - ERP 622/2012
Insulation casing
| Code | Box | Carton | Cat. | € |
| 37050002* | 1 | 1 | 30.02 | ||37050002_LastPrice|| |
* Specific insulation casing for mixing valve, circulator and well
The dimensions of the cabinet allow the installation of the By-pass assembly code 09100600
Use Euroconus fittings with G 3/4" thread (see page
