KILMA-EVO-RM
Climatic mixing unit
Series 770.A

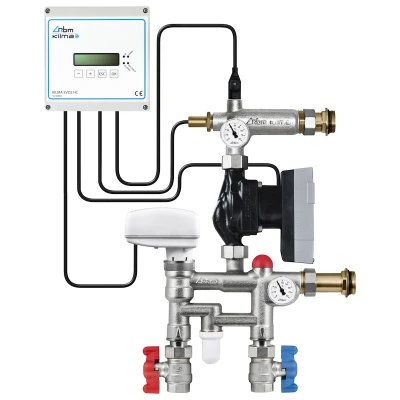

Climate mixing unit Kilma-EVO-RM series.
| Mixing and distribution unit for low temperature circuits, comprised of: circulation pump, manifold recirculation by-pass, boiler recirculation by-pass and mixing unit in-one; modulating adjustment using injection unit with servomotor, electronic climatic control unit, safety thermostat, external probe, immersed internal probe (low temperature delivery). |
| System side connection centre distance 111 mm, G 3/4" ball valve connections and thermostatic mixer. |
Download
Mixing unit
| Code | Pump | Pack | Outer | Cat. | € |
| 07700651 | Para 15/7 SC 130 | 1 | 1 | 30.02 | ||07700651_LastPrice|| |
high performance adjustable flow pump EEI<0.23 - ERP 622/2012
For matching manifolds, please refer to the Manifolds category in the RBM catalogue. Provide for assemblies without ball shut-off valves.
Minimum recessed depth of the accessory containment metal case 130 mm.
