KILMA-FORM HD
Insulation panel
Series 734.B

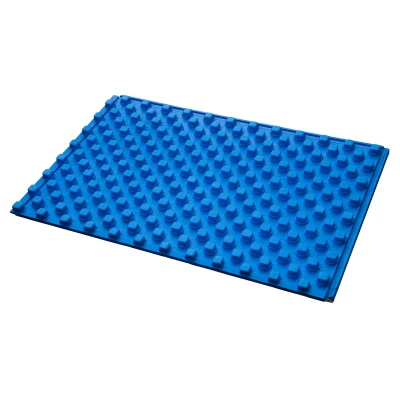

Insulating panel.
| Insulating panel made of stamped expanded polystyrene closed-cell foam with enhanced mechanical strength, with pre-formed relief parts for pipe housing, combined with "PS" film. |
| Grooves undercut spacing 50mm for the realisation of 50 mm multiple pitch circuits |
| Coupling possible by male/female peripheral interlocking joints. |
| Real size: 1223x823 mm |
| Net size: 1200x800 mm |
| Usable floor area 0.96 m² |
| EPS 300 |
| Euroclass E |
Download
Certifications:
Conforme alla norma UNI-EN 13163
Certificato IIP UNI 331
HBCD FREE
“Kilma-FORM HD” panel
| Code | Useful Dim. (mm) | Insul. Th. (mm) | Heat Res. | Pack | Pack m² | Cat. | €/m² |
| 07341592 | 1200x800x40 | 15 | 0,450 | 16 | 15,36 | 30.04 | ||07341592_LastPrice|| |
| 07342592 | 1200x800x50 | 25 | 0,750 | 13 | 12,48 | 30.04 | ||07342592_LastPrice|| |
| 07343592 | 1200x800x60 | 35 | 1,000 | 10 | 9,60 | 30.04 | ||07343592_LastPrice|| |
| 07344292 | 1200x800x67 | 42 | 1,250 | 9 | 8,64 | 30.04 | ||07344292_LastPrice|| |
| 07345892 | 1200x800x83 | 58 | 1,700 | 7 | 6,72 | 30.04 | ||07345892_LastPrice|| |
Applicable piping diameter: 16÷20 mm
