KILMA FUTURA
High efficiency insulation panel for dry installations
Series 3841.B

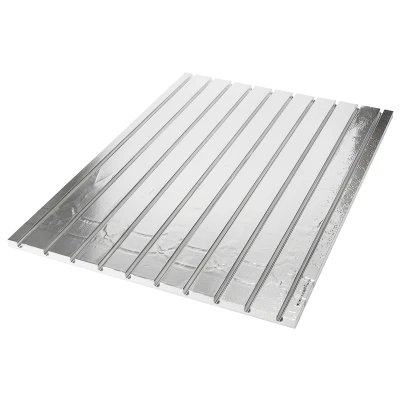

High efficiency insulation panel for dry installations.
Installation pitch 100 mm; coil circuit laying.
Suitable for floor, ceiling and false ceiling installation.
Panel obtained from EPS 300 sheet, milled to allow piping to be laid, top coating with an aluminium layer. |
Real Dim.: 1200X800 mm |
Usable floor area 0.96 m² |
Download
High efficiency insulation panel - Installation pitch 100 mm
Code | Useful Dim. (mm) | Insul. Th. (mm) | Heat Res. | Pack | Pack m² | Pallet m² | Cat. | €/m² |
38412010 | 1200x800x20 | 20 | 0,51 | - | 22,08 | 88,32 | 30.05 | ||38412010_LastPrice|| |
38412510 | 1200x800x25 | 25 | 0,53 | 19 | 18,24 | 72,96 | 30.05 | ||38412510_LastPrice|| |
38413310 | 1200x800x33 | 33 | 0,78 | - | 14,40 | 57,60 | 30.05 | ||38413310_LastPrice|| |
38414810 | 1200x800x48 | 48 | 1,25 | - | 9,60 | 38,40 | 30.05 | ||38414810_LastPrice|| |
Applicable piping type: Hi Performance Plus 16x2 polyethylene.
