KILMA FUTURA
High efficiency insulation panel for dry installations
Series 2926.A
High efficiency insulation panel for dry installations.
Installation pitch 150 mm; coil circuit laying.
Suitable for floor, wall, ceiling and false ceiling installation.

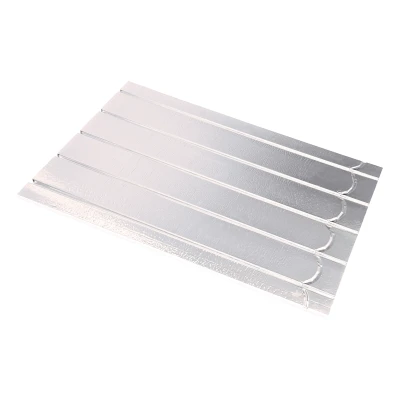

Panel obtained from EPS 300 sheet, milled to allow piping to be laid, top coating with an aluminium layer. |
Real size: 1175x750 mm |
Usable floor area 0.88 m² |
Download
Dry system insulation panel - Installation pitch 150 mm
Code | Useful Dim. (mm) | Insul. Th. (mm) | Heat Res. | Box | Box m² | Pallet m² | Cat. | €/m² |
29261702 | 1175x750x17 | 17 | 0,265 | 10 | 8,80 | 114,40 | 30.05 | ||29261702_LastPrice|| |
29262502 | 1175x750x25 | 25 | 0,587 | 5 | 4,40 | 79,20 | 30.05 | ||29262502_LastPrice|| |
Applicable piping type: Hi Performance Plus 16x2 polyethylene.
To install the panel, it is recommended to use specific adhesives compatible with EPS and relative substrate (use KILMA FUTURA AD code 37020002 or else glues as per technical documentation.
To prevent the pipe from coming off the retention guides and to restore the aluminised film (in case this has been removed during operations performed at the building site) use the anodised aluminium adhesive tape code 2018.00.02
