KILMA-PIANO
“Kilma-PIANO” panel
Series 693

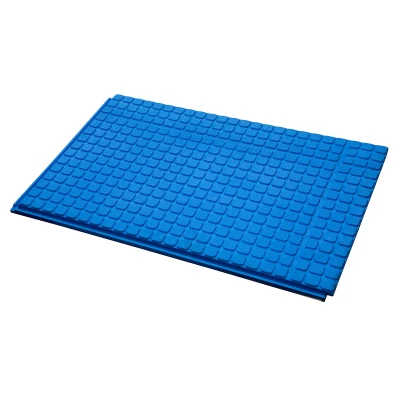

Panel "KILMA-PIANO".
| Floor insulation panel in sintered expanded polystyrene, closed-cell printed, coupled with PS" film. |
| Suitable panel to make circuits with a 50mm pitch and multiple circuits. |
| Coupling possible by male/female peripheral interlocking joints. |
| Real size: 1220x770 mm |
| Net size: 1200x750 mm |
| Usable floor area 0.90 m² |
| EPS 150 |
| Euroclass E |
Download
Certifications:
Compliant with UNI-EN 13163 - UNI 331 IIP certified
HBCD FREE
Compatible systems:
KILMA-GRAF
KILMA-RETE
KILMA-INDUSTRIALE
“Kilma-PIANO” panel
| Code | Useful Dim. (mm) | Insul. Th. (mm) | Heat Res. | Pack | Pack m² | Cat. | €/m² |
| 693.20.02 | 1200x750x20 | 15 - 20 | 0,582 | 30 | 27 | 30.04 | ||06932002_LastPrice|| |
| 693.30.02 | 1200x750x30 | 25 - 30 | 0,885 | 20 | 18 | 30.04 | ||06933002_LastPrice|| |
| 693.42.02 | 1200x750x42 | 37 - 42 | 1,250 | 15 | 13,50 | 30.04 | ||06934202_LastPrice|| |
| 693.47.02 | 1200x750x47 | 42 - 47 | 1,400 | 13 | 11,70 | 30.04 | ||06934702_LastPrice|| |
