Kilma Square R | Series 2327

Kilma Square R
Active radiant plate - insulated

Series 2327

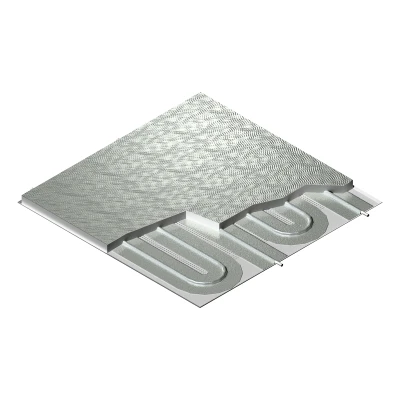

Active radiant plate, insulated, for fitting in metal suspended ceilings.
Consisting of a 30-mm thick EPS layer inside which the 8x1 mm circuit is housed, embedded in aluminium slats.
The radiating element is then coupled with a metal strip finish.
Max operating temperature 80 °C
Min operating temperature 0 °C
Max operating pressure of circuit 2.5 bar
Max test pressure of circuit 4 bar
Finish white colour - smooth

Kilma Square R

Code Dim. LxH (mm) Aluminium th. (mm) Radiant circuit Pack Outer Cat.
2327.00.02 600x600 30 YES 1 1 30.04 ||23270002_LastPrice||

NOTE: various aesthetic surface finishes are possible (with additional cost). Price and availability on request.
