KILMA-TMS
Insulation panel
Series 3308

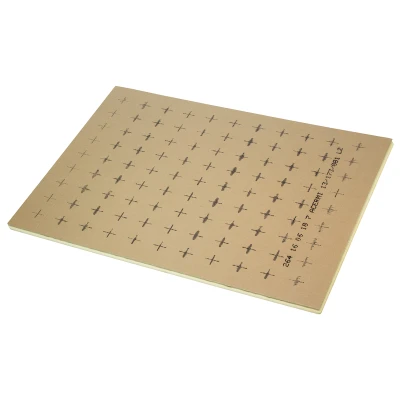

Insulating panel.
For adjoining panel joints use anodised aluminium adhesive tape, code 2018.00.02
| Insulating polyurethane foam panel coupled with aluminate sheet covered in paper. |
| Suitable panel to make circuits with a 50mm pitch and multiple circuits. |
| Fitted with practical superficial guide screen-printing useful to lay the piping correctly. |
| Real size: 1200x1000 mm |
| net size: 1190x990 mm |
| Useful surface area: 1.18 m² |
| European class F |
Download
“Kilma-TMS” panel
| Code | Useful Dim. (mm) | Insul. Th. (mm) | Heat Res. | Pack | Pack m² | Pallet m² | Cat. | €/m² |
| 33082502 | 1190x990x25 | 25 | 1,00 | 15 | 18 | 108,80 | 30.04 | ||33082502_LastPrice|| |
| 33083002 | 1190x990x30 | 30 | 1,30 | 12 | 14,40 | 86,40 | 30.04 | ||33083002_LastPrice|| |
| 33084002 | 1190x990x40 | 40 | 1,85 | 10 | 12 | 72 | 30.04 | ||33084002_LastPrice|| |
| 33084802 | 1190x990x48 | 48 | 2,20 | 8 | 9,60 | 57,60 | 30.04 | ||33084802_LastPrice|| |
| 33085202 | 1190x990x52 | 52 | 2,40 | 7 | 8,40 | 50,40 | 30.04 | ||33085202_LastPrice|| |
| 33088002 | 1190x990x80 | 80 | 3,70 | 5 | 6 | 36 | 30.04 | ||33088002_LastPrice|| |
| 33081202 | 1190x990x120 | 120 | 5,55 | 3 | 3,60 | 21,60 | 30.04 | ||33081202_LastPrice|| |
For adjoining panel joints use anodised aluminium adhesive tape, code 2018.00.02
