KILMA-ZONE
Series 3615R

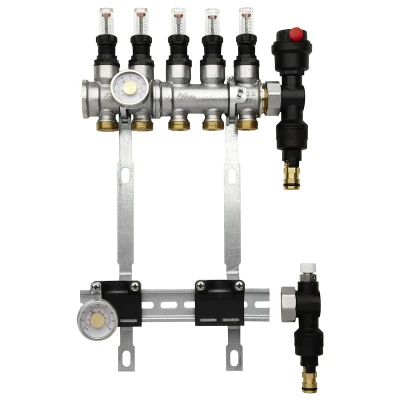

Multi-zone brass modular manifolds kit.
| Temperature range 0÷80 °C |
| Max operating pressure 10 Bar |
Download
Manifold delivery kit
| Code | Measure | Ways | Pack | Cat. | € |
| 3615R0300 | 1" | 3+3 | 1 | 30.01 | ||3615R0300_LastPrice|| |
| 3615R0400 | 1" | 4+4 | 1 | 30.01 | ||3615R0400_LastPrice|| |
| 3615R0500 | 1" | 5+5 | 1 | 30.01 | ||3615R0500_LastPrice|| |
| 3615R0600 | 1" | 6+6 | 1 | 30.01 | ||3615R0600_LastPrice|| |
| 3615R0700 | 1" | 7+7 | 1 | 30.01 | ||3615R0700_LastPrice|| |
| 3615R0800 | 1" | 8+8 | 1 | 30.01 | ||3615R0800_LastPrice|| |
| 3615R0900 | 1" | 9+9 | 1 | 30.01 | ||3615R0900_LastPrice|| |
| 3615R1000 | 1" | 10+10 | 1 | 30.01 | ||3615R1000_LastPrice|| |
| 3615R1100 | 1" | 11+11 | 1 | 30.01 | ||3615R1100_LastPrice|| |
| 3615R1200 | 1" | 12+12 | 1 | 30.01 | ||3615R1200_LastPrice|| |
| 3615R1300 | 1" | 13+13 | 1 | 30.01 | ||3615R1300_LastPrice|| |
| 3615R1400 | 1" | 14+14 | 1 | 30.01 | ||3615R1400_LastPrice|| |
Centre distance between connections via distribution manifolds 37 mm - threading Standard RBM W24,5x19F
Manifold kit can be inserted in walls constructed in 8 cm box, plastered.
Made up of flow meter supply indicator on each supply way.
Use fittings with RBM Standard thread for pipe connection.
Set up Series 306 thermo-electric actuators to automatically shut off the single circuits.
Provide for manifold with thermostatically-controlled valves Series 3616 (compulsory completion accessory to be chosen according to circuit management configuration).
