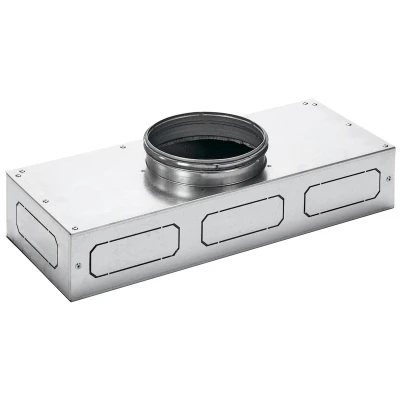

LO-BOX | Series 5208

LO-BOX
Lowered manifold with perimeter connections and connection/inspection from above

Series 5208
Lowered manifold with perimeter connections and connection/inspection from above
Made of galvanised sheet with internal insulation thickness 6mm (λ = 0.0344W / mK).
Aeraulic connections:
DN 160M inlet neck
1+3+3+1x perimeter outlets with knockouts for 132x52mm pipes to be opened according to specific needs (in combination with manifold starting valve adapters code 5291.09.05)
Dimensions (LXHXD): 495x95x200mm, weight 4.5kg

Lowered manifold for flat pipes

Code Model Description Pack Outer Cat.
5208.05.12 LOBOX-8/12 DN160M, 1+3+3+1x132x52F 1 1 30.09 ||52080512_LastPrice||
